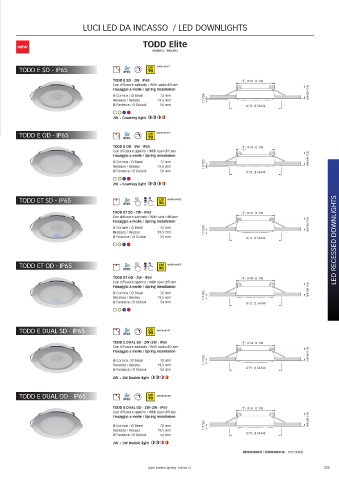

Page 35 - Quick
P. 35
LUCI LED DA INCASSO / LED DOWNLIGHTS
TODD Elite
NEW
Modelli / Models
TODD E SD - IP65 CRI WARM WHITE
90
TODD E SD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore satinato / With satin diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm Ø 72 (2 53/64)
2W + Courtesy light
TODD E OD - IP65 CRI WARM WHITE
90
TODD E OD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm Ø 72 (2 53/64)
2W + Courtesy light
TODD ET SD - IP65 CRI WARM WHITE
90
TODD ET SD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore satinato / With satin diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm Ø 72 (2 53/64) LED RECESSED DOWNLIGHTS
TODD ET OD - IP65 CRI WARM WHITE
90
TODD ET OD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm Ø 72 (2 53/64)
TODD E DUAL SD - IP65 CRI WARM WHITE
90
TODD E DUAL SD - 2W+2W - IP65 Ø 54 (2 1/8)
Con diffusore satinato / With satin diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Ø Cornice / Ø Bezel 72 mm 1 (1/32)
Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 54 mm Ø 72 (2 53/64)
2W + 2W Double light
TODD E DUAL OD - IP65 CRI WARM WHITE
90
TODD E DUAL OD - 2W+2W - IP65 Ø 54 (2 1/8)
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Ø Cornice / Ø Bezel 72 mm 1 (1/32)
Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 54 mm Ø 72 (2 53/64)
2W + 2W Double light
Dimensioni / Dimensions - mm (inch)
Quick Marine Lighting - Edition 12 35
