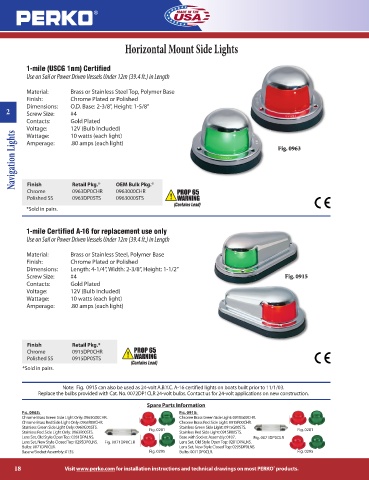

Page 18 - Perko

Horizontal Mount Side Lights

1-mile (USCG 1nm) Certified
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Brass or Stainless Steel Top, Polymer Base
Finish: Chrome Plated or Polished
Dimensions: O.D. Base: 2-3/8”, Height: 1-5/8”
2 Screw Size: #4
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Navigation Lights Fig. 0963
Wattage: 10 watts (each light)
Amperage: .80 amps (each light)

Finish
Chrome Retail Pkg.* OEM Bulk Pkg.*
0963DP0CHR 0963000CHR
Polished SS 0963DP0STS 0963000STS
*Sold in pairs.

1-mile Certified A-16 for replacement use only
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Brass or Stainless Steel, Polymer Base
Finish: Chrome Plated or Polished
Dimensions: Length: 4-1/4”, Width: 2-3/8”, Height: 1-1/2”
Screw Size: #4 Fig. 0915
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts (each light)
Amperage: .80 amps (each light)

Finish Retail Pkg.*
Chrome 0915DP0CHR
Polished SS 0915DP0STS
*Sold in pairs.

Note: Fig. 0915 can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03.
Replace the bulbs provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24-volt applications on new construction.
Spare Parts Information
FIG. 0963: FIG. 0915:
Chrome Brass Green Side Light Only: 0963G00CHR. Chrome Brass Green Side Light: 0915G00CHR.
Chrome Brass Red Side Light Only: 0963R00CHR. Chrome Brass Red Side Light: 0915R00CHR.
Stainless Green Side Light Only: 0963G00STS. Fig. 0281 Stainless Green Side Light: 0915G00STS. Fig. 0281
Stainless Red Side Light Only: 0963R00STS. Stainless Red Side Light: 0915R00STS.
Lens Set, Old Style Open Top: 0281DPALNS. Base with Socket Assembly: 0107. Fig. 0071DP0CLR
Lens Set, New Style Closed Top: 0295DP0LNS. Fig. 0071DP0CLR Lens Set, Old Style Open Top: 0281DPALNS.
Bulbs: 0071DP0CLR. Lens Set, New Style Closed Top: 0295DP0LNS.
Base w/Socket Assembly: 0135. Fig. 0295 Bulbs: 0071DP0CLR. Fig. 0295

18 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
