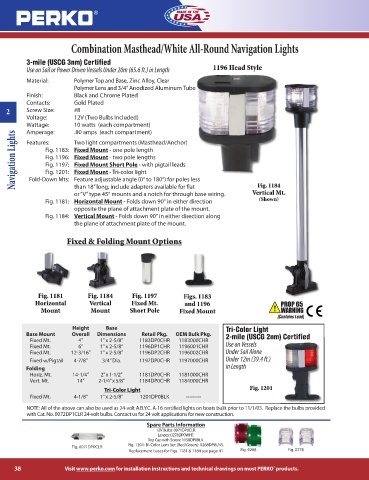

Page 38 - Perko

Combination Masthead/White All-Round Navigation Lights

3-mile (USCG 3nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length 1196 Head Style
Material: Polymer Top and Base, Zinc Alloy, Clear
Polymer Lens and 3/4” Anodized Aluminum Tube
Finish: Black and Chrome Plated
Contacts: Gold Plated
2 Screw Size: #8
Voltage: 12V (Two Bulbs Included)
Wattage: 10 watts (each compartment)
Amperage: .80 amps (each compartment)
Navigation Lights Features: Two light compartments (Masthead/Anchor)

Fig. 1183: Fixed Mount - one pole length
Fig. 1196: Fixed Mount - two pole lengths
Fig. 1197: Fixed Mount Short Pole - with pigtail leads
Fig. 1201: Fixed Mount - Tri-color light
Fold-Down Mts: Feature adjustable angle (0° to 180°) for poles less
Fig. 1184
than 18” long, include adapters available for flat
or “V” type 45° mounts and a notch for through base wiring. Vertical Mt.
(Shown)
Fig. 1181: Horizontal Mount - Folds down 90° in either direction
opposite the plane of attachment plate of the mount.
Fig. 1184: Vertical Mount - Folds down 90° in either direction along
the plane of attachment plate of the mount.

Fixed & Folding Mount Options

Fig. 1181 Fig. 1184 Fig. 1197 Figs. 1183
Horizontal Vertical Fixed Mt. and 1196
Mount Mount Short Pole Fixed Mount

Height Base Tri-Color Light
Base Mount Overall Dimensions Retail Pkg. OEM Bulk Pkg. 2-mile (USCG 2nm) Certified
Fixed Mt. 4” 1” x 2-5/8” 1183DP0CHR 1183000CHR
Fixed Mt. 6” 1” x 2-5/8” 1196DP1CHR 1196001CHR Use on Vessels
Fixed Mt. 12-3/16” 1” x 2-5/8” 1196DP2CHR 1196002CHR Under Sail Alone

Fixed w/Pigtail 4-7/8” 3/4” Dia. 1197DP0CHR 1197000CHR Under 12m (39.4 ft.)
in Length
Folding
Horiz. Mt. 14-1/4” 2” x 1-1/2” 1181DP0CHR 1181000CHR
Vert. Mt. 14” 2-1/4” x 5/8” 1184DP0CHR 1184000CHR
Fig. 1201
Tri-Color Light
Fixed Mt. 4-1/8” 1” x 2-5/8” 1201DP0BLK ---------
NOTE: All of the above can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03. Replace the bulbs provided
with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24 volt applications for new construction.
Spare Parts Information
12V Bulbs: 0071DP0CLR.
Lenses: 0278DP0WHT.
Top Cap with Screw: 1158DP0BLK.
Fig. 1201: Bi-Color Lens Set (Red/Green): 0268DP0LNS.
Fig. 0071DP0CLR
Replacement bases for Figs. 1181 & 1184 see page 41 Fig. 0268 Fig. 0278

38 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
