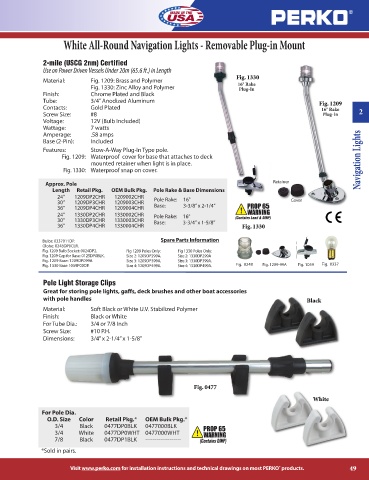

Page 49 - Perko

White All-Round Navigation Lights - Removable Plug-in Mount

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length
Fig. 1330
Material: Fig. 1209: Brass and Polymer 16° Rake
Fig. 1330: Zinc Alloy and Polymer Plug-In
Finish: Chrome Plated and Black
Tube: 3/4” Anodized Aluminum Fig. 1209
Contacts: Gold Plated 16° Rake 2
Screw Size: #8 Plug-In
Voltage: 12V (Bulb Included)
Wattage: 7 watts
Amperage: .58 amps
Base (2-Pin): Included
Features: Stow-A-Way Plug-In Type pole.
Fig. 1209: Waterproof cover for base that attaches to deck Navigation Lights
mounted retainer when light is in place.
Fig. 1330: Waterproof snap on cover.

Retainer
Approx. Pole
Length Retail Pkg. OEM Bulk Pkg. Pole Rake & Base Dimensions
24” 1209DP2CHR 1209002CHR Pole Rake: 16°
30” 1209DP3CHR 1209003CHR Cover
36” 1209DP4CHR 1209004CHR Base: 3-3/8” x 2-1/4”
24” 1330DP2CHR 1330002CHR Pole Rake: 16°
30” 1330DP3CHR 1330003CHR Base: 3-3/4” x 1-5/8”
36” 1330DP4CHR 1330004CHR Fig. 1330

Bulbs: 0337011DP. Spare Parts Information
Globe: 0248DP0CLR.
Fig. 1209 Bulb Socket: 0024DP2. Fig 1209 Poles Only: Fig 1330 Poles Only:
Fig. 1209 Cap for Base: 0125DP0BLK. Size 2: 1209DP299A. Size 2: 1330DP299A
Fig. 1209 Base: 1209DP099A Size 3: 1209DP399A. Size 3: 1330DP399A.
Fig. 1330 Base 1059P00DP. Size 4: 1209DP499A. Size 4: 1330DP499A. Fig. 0248 Fig. 1209-99A Fig. 1059 Fig. 0337

Pole Light Storage Clips
Great for storing pole lights, gaffs, deck brushes and other boat accessories
with pole handles Black
Material: Soft Black or White U.V. Stabilized Polymer
Finish: Black or White
For Tube Dia.: 3/4 or 7/8 Inch
Screw Size: #10 P.H.
Dimensions: 3/4” x 2-1/4” x 1-5/8”

Fig. 0477

White

For Pole Dia.
O.D. Size Color Retail Pkg.* OEM Bulk Pkg.*
3/4 Black 0477DP0BLK 0477000BLK
3/4 White 0477DP0WHT 0477000WHT
7/8 Black 0477DP1BLK -------------------
*Sold in pairs.

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 49
