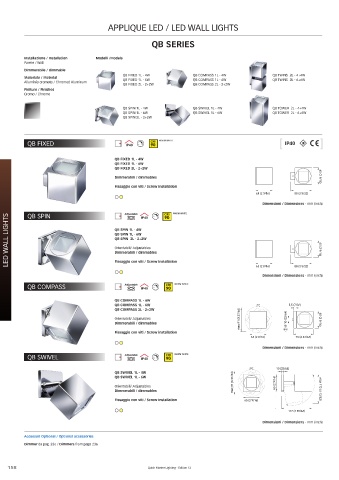

APPLIQUE LED / LED WALL LIGHTS

QB SERIES

Installazione / Installation Modelli /Models
Parete / Wall
Dimmerabile / dimmable
QB FIXED 1L - 4W QB COMPASS 1L - 4W QB TWINS 2L - 4+4W
Materiale / Material QB FIXED 1L - 6W QB COMPASS 1L - 6W QB TWINS 2L - 6+6W
Alluminio cromato / Chromed Aluminum
QB FIXED 2L - 2+2W QB COMPASS 2L - 2+2W
Finiture / Finishes
Cromo / Chrome
QB SPIN 1L - 4W QB SWIVEL 1L - 4W QB TOWER 2L - 4+4W
QB SPIN 1L - 6W QB SWIVEL 1L - 6W QB TOWER 2L - 6+6W
QB SPIN 2L - 2+2W

QB FIXED CRI WARM WHITE [ IP40 ]
90

QB FIXED 1L - 4W
QB FIXED 1L - 6W
QB FIXED 2L - 2+2W
Dimmerabili / dimmables 65 (2 9/16)
Fissaggio con viti / Screw installation
65 (2 9/16) 80 (3 5/32)

Dimensioni / Dimensions - mm (inch)

WARM WHITE
CRI
QB SPIN
LED WALL LIGHTS QB SPIN 1L - 4W 65 (2 9/16)
90
QB SPIN 1L - 6W
QB SPIN 2L - 2+2W
Orientabili/ Adjustables
Dimmerabili / dimmables
Fissaggio con viti / Screw installation
65 (2 9/16) 80 (3 5/32)
Dimensioni / Dimensions - mm (inch)
QB COMPASS CRI WARM WHITE
90
QB COMPASS 1L - 4W
QB COMPASS 1L - 6W 350° 5,5 (7/32)
QB COMPASS 2L - 2+2W
max 91 (3 37/64) Ø 10 (25/64) 65 (2 9/16)
Orientabili/ Adjustables
Dimmerabili / dimmables
Fissaggio con viti / Screw installation
65 (2 9/16) 75 (2 61/64)

Dimensioni / Dimensions - mm (inch)
QB SWIVEL CRI WARM WHITE
90

350° 10 (25/64)
QB SWIVEL 1L - 4W
QB SWIVEL 1L - 6W
Orientabili/ Adjustables max 91 (3 37/64) 65 (2 9/16)
Dimmerabili / dimmables max 112 (4 13/32)
Fissaggio con viti / Screw installation 65 (2 9/16)

117 (4 39/64)
Dimensioni / Dimensions - mm (inch)

Accessori Optional / Optional accessories
Dimmer da pag. 236 / Dimmers from page 236
