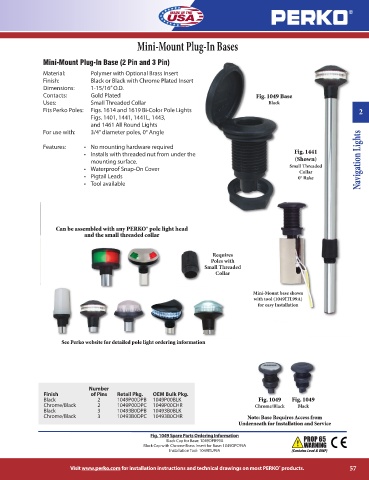

Page 57 - Perko

Mini-Mount Plug-In Bases

Mini-Mount Plug-In Base (2 Pin and 3 Pin)
Material: Polymer with Optional Brass Insert
Finish: Black or Black with Chrome Plated Insert
Dimensions: 1-15/16” O.D.
Contacts: Gold Plated Fig. 1049 Base
Uses: Small Threaded Collar Black
Fits Perko Poles: Figs. 1614 and 1619 Bi-Color Pole Lights 2
Figs. 1401, 1441, 1441L, 1443,
and 1461 All Round Lights
For use with: 3/4” diameter poles, 0° Angle

Features: • No mounting hardware required
• Installs with threaded nut from under the Fig. 1441
mounting surface. (Shown) Navigation Lights
Small Threaded
• Waterproof Snap-On Cover
Collar
• Pigtail Leads 0° Rake
• Tool available

®
Can be assembled with any PERKO pole light head
and the small threaded collar

Requires
Poles with
Small Threaded
Collar

Mini-Mount base shown
with tool (1049ITL99A)
for easy Installation

See Perko website for detailed pole light ordering information

Number
Finish of Pins Retail Pkg. OEM Bulk Pkg.
Black 2 1049P00DPB 1049P00BLK Fig. 1049 Fig. 1049
Chrome/Black 2 1049P00DPC 1049P00CHR Chrome/Black Black
Black 3 10493B0DPB 10493B0BLK
Chrome/Black 3 10493B0DPC 10493B0CHR Note: Base Requires Access from
Underneath for Installation and Service
Fig. 1049 Spare Parts Ordering Information
Black Cap for Base: 1049DPB99A
Black Cap with Chrome Brass Insert for Base: 1049DPC99A
Installation Tool: 1049ITL99A

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 57
®
