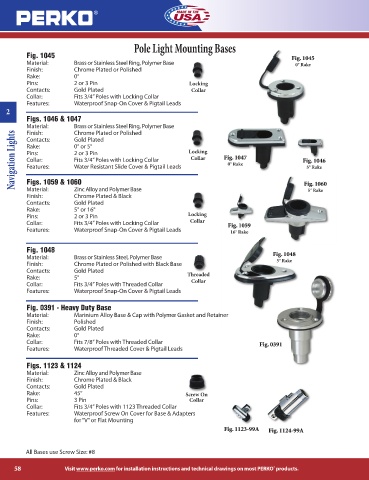

Page 58 - Perko

Pole Light Mounting Bases
Fig. 1045 Fig. 1045
Material: Brass or Stainless Steel Ring, Polymer Base 0° Rake
Finish: Chrome Plated or Polished
Rake: 0°
Pins: 2 or 3 Pin Locking
Contacts: Gold Plated Collar
Collar: Fits 3/4” Poles with Locking Collar
Features: Waterproof Snap-On Cover & Pigtail Leads
2
Figs. 1046 & 1047
Material: Brass or Stainless Steel Ring, Polymer Base
Navigation Lights Rake: 0° or 5° Locking Fig. 1047 Fig. 1046
Finish: Chrome Plated or Polished
Contacts: Gold Plated

Pins: 2 or 3 Pin
Collar
Collar: Fits 3/4” Poles with Locking Collar
0° Rake
Features: Water Resistant Slide Cover & Pigtail Leads
5° Rake
Figs. 1059 & 1060
Material: Zinc Alloy and Polymer Base
5° Rake
Finish: Chrome Plated & Black Fig. 1060
Contacts: Gold Plated
Rake: 5° or 16°
Pins: 2 or 3 Pin Locking
Collar: Fits 3/4” Poles with Locking Collar Collar Fig. 1059
Features: Waterproof Snap-On Cover & Pigtail Leads 16° Rake

Fig. 1048
Material: Brass or Stainless Steel, Polymer Base Fig. 1048
5° Rake
Finish: Chrome Plated or Polished with Black Base
Contacts: Gold Plated
Rake: 5° Threaded
Collar
Collar: Fits 3/4” Poles with Threaded Collar
Features: Waterproof Snap-On Cover & Pigtail Leads

Fig. 0391 - Heavy Duty Base
Material: Marinium Alloy Base & Cap with Polymer Gasket and Retainer
Finish: Polished
Contacts: Gold Plated
Rake: 0°
Collar: Fits 7/8” Poles with Threaded Collar Fig. 0391
Features: Waterproof Threaded Cover & Pigtail Leads

Figs. 1123 & 1124
Material: Zinc Alloy and Polymer Base
Finish: Chrome Plated & Black
Contacts: Gold Plated
Rake: 45° Screw On
Pins: 3 Pin Collar
Collar: Fits 3/4” Poles with 1123 Threaded Collar
Features: Waterproof Screw On Cover for Base & Adapters
for “V” or Flat Mounting
Fig. 1123-99A Fig. 1124-99A

All Bases use Screw Size: #8
