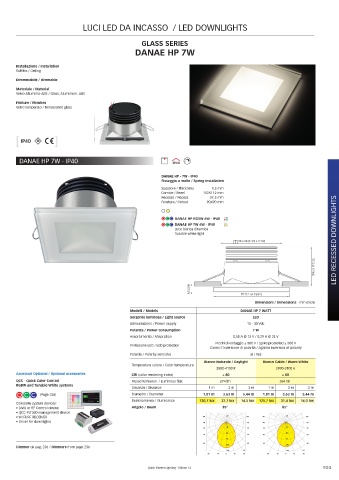

Page 103 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

GLASS SERIES
DANAE HP 7W

Installazione / Installation
Soffitto / Ceiling
Dimmerabile / dimmable
Materiale / Material
Vetro-Alluminio-ABS / Glass, Aluminium, ABS
Finiture / Finishes
Vetro temperato / Temperated glass

[ IP40 ]

DANAE HP 7W - IP40

DANAE HP - 7W - IP40
Fissaggio a molle / Spring installation
Spessore / Thickness 9,5 mm
Cornice / Bezel 112X112 mm
Recesso / Recess 57,5 mm
LED RECESSED DOWNLIGHTS
Foratura / Cutout 90X90 mm

DANAE HP RGBW 6W - IP40
DANAE HP TW 6W - IP40
Luce bianca dinamica
Tunable white light
90 x 90 (3 1/2 x 3 1/2)

9,5 (3/8) 112 (4 13/32) 57,5 (2 17/64)

Dimensioni / Dimensions - mm (inch)
Modelli / Models DANAE HP 7 WATT
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc
Potenza / Power consumption 7 W
Assorbimento / Absorption 0,58 A @ 12 V / 0,29 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive Sì / Yes
Bianco Naturale / Daylight Bianco Caldo / Warm White
Temperatura colore / Color temperature
3800-4100 K 2900-3100 K
Accessori Optional / Optional accessories CRI (color rendering index) ≥ 80 ≥ 80
QCC - Quick Color Control Flusso luminoso / Luminous flux 274 lm 264 lm
RGBW and Tunable White systems
Distanza / Distance 1 m 2 m 3 m 1 m 2 m 3 m
(Page 238) Diametro / Diameter 1,81 m 3,63 m 5,44 m 1,81 m 3,63 m 5,44 m
Illuminamento / Illuminance 130,7 lux 32,7 lux 14,5 lux 125,7 lux 31,4 lux 14,0 lux
Complete system devices:
85°
85°
• DMX or RF Control device Angolo / Beam Angolo del Fascio 85° Angolo del Fascio 85°
• QCC-PLT300 management device
• WI FI/RF RECEIVER 105 30 105 105 30 105
• Driver for downlights 90 90 90 90
30 30
75 75 75 75
60 60
60 60 60 60
90 90
45 120 45 45 120 45
Dimmer da pag. 236 / Dimmers from page 236
150 cd 150 cd
30 15 0 15 30 30 15 0 15 30
DANAE 7W DANAE 7W
luce naturale luce calda
