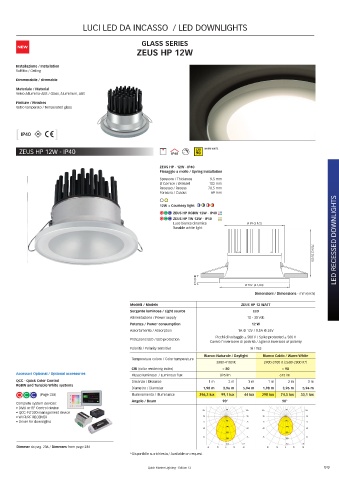

Page 99 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

GLASS SERIES
NEW
ZEUS HP 12W

Installazione / Installation
Soffitto / Ceiling
Dimmerabile / dimmable
Materiale / Material
Vetro-Alluminio-ABS / Glass, Aluminium, ABS
Finiture / Finishes
Vetro temperato / Temperated glass

[ IP40 ]

ZEUS HP 12W - IP40 CRI WARM WHITE
90
ZEUS HP - 12W - IP40
Fissaggio a molle / Spring installation
Spessore / Thickness 9,5 mm
Ø Cornice / Ø Bezel 102 mm
Recesso / Recess 70,5 mm
Foratura / Cutout 89 mm
LED RECESSED DOWNLIGHTS

12W + Courtesy light
ZEUS HP RGBW 12W - IP40
ZEUS HP TW 12W - IP40
Luce bianca dinamica Ø 89 (3 1/2)
Tunable white light

70,5 (2 25/32)

9,5 (3/8) Ø 102 (4 1/64)

Dimensioni / Dimensions - mm (inch)
Modelli / Models ZEUS HP 12 WATT
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc
Potenza / Power consumption 12 W
Assorbimento / Absorption 1A @ 12V / 0,5A @ 24V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive Sì / Yes
Bianco Naturale / Daylight Bianco Caldo / Warm White
Temperatura colore / Color temperature
3800-4100 K 2900-3100 K (2600-2800 K*)
CRI (color rendering index) ≥ 80 ≥ 90
Accessori Optional / Optional accessories Flusso luminoso / Luminous flux 895 lm 675 lm
QCC - Quick Color Control Distanza / Distance 1 m 2 m 3 m 1 m 2 m 3 m
RGBW and Tunable White systems
Diametro / Diameter 1,98 m 3,96 m 5,94 m 1,98 m 3,96 m 5,94 m
(Page 238) Illuminamento / Illuminance 396,3 lux 99,1 lux 44 lux 298 lux 74,5 lux 33,1 lux
Angolo / Beam 90° 90°
Complete system devices: Angolo del Fascio 90° Angolo del Fascio 90°
• DMX or RF Control device 90 90
• QCC-PLT300 management device 105 105 105 105
• WI FI/RF RECEIVER 90 90 90 90
• Driver for downlights 75 90 75 75 90 75
180 180
60 60 60 60
270 270
45 45 45 45
360 360
450 cd 450 cd
Dimmer da pag. 236 / Dimmers from page 236 30 15 0 15 30 30 15 0 15 30
*Disponibile su richiesta / Available on request ZEUS 12W ZEUS 12W
luce naturale luce calda
Quick Marine Lighting - Edition 12 99
