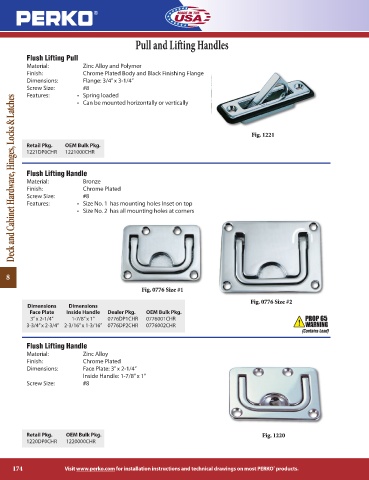

Page 174 - Perko

Pull and Lifting Handles

Flush Lifting Pull
Material: Zinc Alloy and Polymer
Finish: Chrome Plated Body and Black Finishing Flange
Dimensions: Flange: 3/4” x 3-1/4”
Screw Size: #8
Features: • Spring loaded
Deck and Cabinet Hardware, Hinges, Locks & Latches
• Can be mounted horizontally or vertically

Fig. 1221
Retail Pkg. OEM Bulk Pkg.
1221DP0CHR 1221000CHR

Flush Lifting Handle
Material: Bronze
Finish: Chrome Plated
Screw Size: #8
Features: • Size No. 1 has mounting holes Inset on top
• Size No. 2 has all mounting holes at corners

8

Fig. 0776 Size #1
Fig. 0776 Size #2
Dimensions Dimensions
Face Plate Inside Handle Dealer Pkg. OEM Bulk Pkg.
3” x 2-1/4” 1-7/8” x 1” 0776DP1CHR 0776001CHR
3-3/4” x 2-3/4” 2-3/16” x 1-3/16” 0776DP2CHR 0776002CHR

Flush Lifting Handle
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Face Plate: 3” x 2-1/4”
Inside Handle: 1-7/8” x 1”
Screw Size: #8

Retail Pkg. OEM Bulk Pkg. Fig. 1220
1220DP0CHR 1220000CHR

174 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
