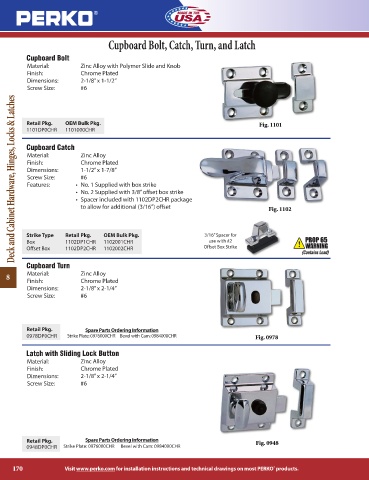

Page 170 - Perko

Cupboard Bolt, Catch, Turn, and Latch

Cupboard Bolt
Material: Zinc Alloy with Polymer Slide and Knob
Finish: Chrome Plated
Dimensions: 2-1/8” x 1-1/2”
Screw Size: #6
Deck and Cabinet Hardware, Hinges, Locks & Latches

Retail Pkg. OEM Bulk Pkg. Fig. 1101
1101DP0CHR 1101000CHR

Cupboard Catch
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: 1-1/2” x 1-7/8”
Screw Size: #6
Features: • No. 1 Supplied with box strike
• No. 2 Supplied with 3/8” offset box strike
• Spacer included with 1102DP2CHR package
to allow for additional (3/16”) offset Fig. 1102

Strike Type Retail Pkg. OEM Bulk Pkg. 3/16” Spacer for
Box 1102DP1CHR 1102001CHR use with #2
Offset Box 1102DP2CHR 1102002CHR Offset Box Strike

Cupboard Turn
Material: Zinc Alloy
8
Finish: Chrome Plated
Dimensions: 2-1/8” x 2-1/4”
Screw Size: #6

Retail Pkg. Spare Parts Ordering Information
0978DP0CHR Strike Plate: 0976000CHR Bevel with Cam: 0984000CHR Fig. 0978

Latch with Sliding Lock Button
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: 2-1/8” x 2-1/4”
Screw Size: #6

Retail Pkg. Spare Parts Ordering Information Fig. 0948
0948DP0CHR Strike Plate: 0976000CHR Bevel with Cam: 0984000CHR

170 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
