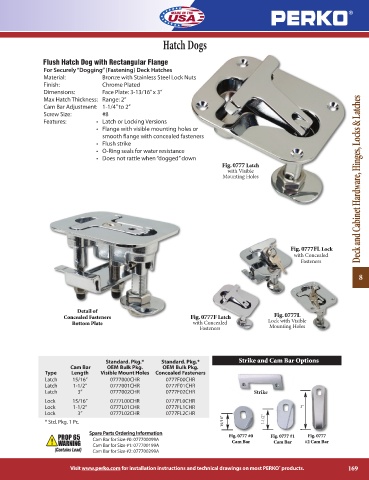

Page 169 - Perko

Hatch Dogs

Flush Hatch Dog with Rectangular Flange
For Securely “Dogging” (Fastening) Deck Hatches
Material: Bronze with Stainless Steel Lock Nuts
Finish: Chrome Plated
Dimensions: Face Plate: 3-13/16” x 3”
Max Hatch Thickness: Range: 2”
Cam Bar Adjustment: 1-1/4” to 2”
Screw Size: #8
Features: • Latch or Locking Versions
• Flange with visible mounting holes or
smooth flange with concealed fasteners
• Flush strike
• O-Ring seals for water resistance
• Does not rattle when “dogged” down
Fig. 0777 Latch
with Visible
Mounting Holes Deck and Cabinet Hardware, Hinges, Locks & Latches

Fig. 0777FL Lock
with Concealed
Fasteners

8

Detail of
Concealed Fasteners Fig. 0777F Latch Fig. 0777L
Bottom Plate with Concealed Lock with Visible
Fasteners Mounting Holes

Standard. Pkg.* Standard. Pkg.* Strike and Cam Bar Options
Cam Bar OEM Bulk Pkg. OEM Bulk Pkg.
Type Length Visible Mount Holes Concealed Fasteners

Latch 15/16” 0777000CHR 0777F00CHR
Latch 1-1/2” 0777001CHR 0777F01CHR
Latch 3” 0777002CHR 0777F02CHR Strike
Lock 15/16” 0777L00CHR 0777FL0CHR
Lock 1-1/2” 0777L01CHR 0777FL1CHR 3”
Lock 3” 0777L02CHR 0777FL2CHR
15/16” 1-1/2”
* Std. Pkg. 1 Pc.
Spare Parts Ordering Information
Fig. 0777 #0 Fig. 0777 #1 Fig. 0777
Cam Bar for Size #0: 077700099A Cam Bar Cam Bar #2 Cam Bar
Cam Bar for Size #1: 077700199A
Cam Bar for Size #2: 077700299A

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 169
®
