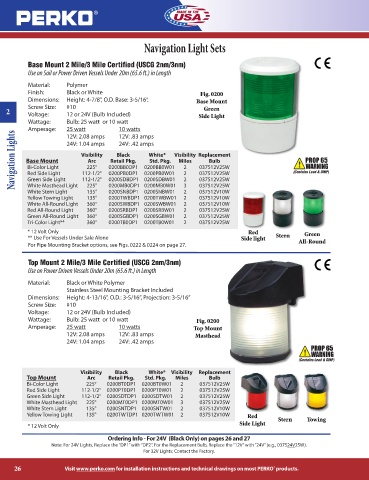

Page 26 - Perko

Navigation Light Sets

Base Mount 2 Mile/3 Mile Certified (USCG 2nm/3nm)
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Polymer
Finish: Black or White Fig. 0200
Dimensions: Height: 4-7/8”, O.D. Base: 3-5/16”, Base Mount
Screw Size: #10 Green
2
Voltage: 12 or 24V (Bulb Included) Side Light
Wattage: Bulb: 25 watt or 10 watt
Amperage: 25 watt 10 watts
Navigation Lights Base Mount Arc Retail Pkg. 0200BB0W01 2 037512V25W
12V: 2.08 amps 12V: .83 amps
24V: 1.04 amps 24V: .42 amps
Visibility Black White* Visibility Replacement
Std. Pkg. Miles Bulb
Bi-Color Light 225°
0200BB0DP1
0200PB0W01 2 037512V25W
0200PB0DP1
Red Side Light 112-1/2°
Green Side Light 112-1/2°
0200MB0DP1 0200MB0W01 3 037512V25W
White Masthead Light 225°
0200SNBDP1
0200SNBW01 2 037512V10W
White Stern Light 135° 0200SDBDP1 0200SDBW01 2 037512V25W
Yellow Towing Light 135° 0200TWBDP1 0200TWBW01 2 037512V10W
White All-Round Light 360° 0200SWBDP1 0200SWBW01 2 037512V10W
Red All-Round Light 360° 0200SRBDP1 0200SRBW01 2 037512V25W
Green All-Round Light 360° 0200SGBDP1 0200SGBW01 2 037512V25W
Tri-Color Light** 360° 0200TB0DP1 0200TB0W01 2 037512V25W
* 12 Volt Only Red Green
** Use For Vessels Under Sale Alone Side light Stern
For Pipe Mounting Bracket options, see Figs. 0222 & 0224 on page 27. All-Round
Top Mount 2 Mile/3 Mile Certified (USCG 2nm/3nm)
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Black or White Polymer
Stainless Steel Mounting Bracket Included
Dimensions: Height: 4-13/16”, O.D.: 3-5/16”, Projection: 3-5/16”
Screw Size: #10
Voltage: 12 or 24V (Bulb Included)
Wattage: Bulb: 25 watt or 10 watt Fig. 0200
Amperage: 25 watt 10 watts Top Mount
12V: 2.08 amps 12V: .83 amps Masthead
24V: 1.04 amps 24V: .42 amps

Visibility Black White* Visibility Replacement
Top Mount Arc Retail Pkg. Std. Pkg. Miles Bulb
Bi-Color Light 225° 0200BT0DP1 0200BT0W01 2 037512V25W
Red Side Light 112-1/2° 0200PT0DP1 0200PT0W01 2 037512V25W
Green Side Light 112-1/2° 0200SDTDP1 0200SDTW01 2 037512V25W
White Masthead Light 225° 0200MT0DP1 0200MT0W01 3 037512V25W
White Stern Light 135° 0200SNTDP1 0200SNTW01 2 037512V10W
Yellow Towing Light 135° 0200TWTDP1 0200TWTW01 2 037512V10W Red
Stern Towing
Side Light
* 12 Volt Only
Ordering Info - For 24V (Black Only) on pages 26 and 27
Note: For 24V Lights, Replace the “DP1” with “DP2”. For the Replacement Bulb, Replace the “12V” with “24V” (e.g., 037524V25W).
For 32V Lights: Contact the Factory.

26 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
