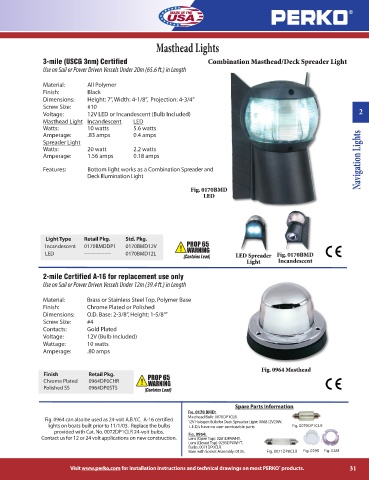

Page 31 - Perko

Masthead Lights

3-mile (USCG 3nm) Certified Combination Masthead/Deck Spreader Light
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: All Polymer
Finish: Black
Dimensions: Height: 7”, Width: 4-1/8”, Projection: 4-3/4”
Screw Size: #10
Voltage: 12V LED or Incandescent (Bulb Included) 2
Masthead Light Incandescent LED
Watts: 10 watts 5.6 watts
Amperage: .83 amps 0.4 amps
Spreader Light
Watts: 20 watt 2.2 watts
Amperage: 1.56 amps 0.18 amps Navigation Lights

Features: Bottom light works as a Combination Spreader and
Deck Illumination Light

Fig. 0170BMD
LED

Light Type Retail Pkg. Std. Pkg.
Incandescent 0170BMDDP1 0170BMD12V
LED ---------------- 0170BMD12L LED Spreader Fig. 0170BMD
Light Incandescent

2-mile Certified A-16 for replacement use only
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Brass or Stainless Steel Top, Polymer Base
Finish: Chrome Plated or Polished
Dimensions: O.D. Base: 2-3/8”, Height: 1-5/8””
Screw Size: #4
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps

Fig. 0964 Masthead
Finish Retail Pkg.
Chrome Plated 0964DP0CHR
Polished SS 0964DP0STS

Spare Parts Information
FIG. 0170 BMD:
Masthead Bulb: 0070DP1CLR.
Fig. 0964 can also be used as 24-volt A.B.Y.C. A-16 certified
12V Halogen Bulb for Deck Spreader Light: 006812V20W.
lights on boats built prior to 11/1/03. Replace the bulbs L.E.D.’s have no user serviceable parts Fig. 0070DP1CLR
provided with Cat. No. 0072DP1CLR 24-volt bulbs.
FIG. 0964:
Contact us for 12 or 24 volt applications on new construction. Lens (Open Top): 0281DPAWHT.
Lens (Closed Top): 0295DP0WHT.
Bulbs: 0071DP0CLR.
Base with Socket Assembly: 0135. Fig. 0071DP0CLR Fig. 0295 Fig. 0281
®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 31
