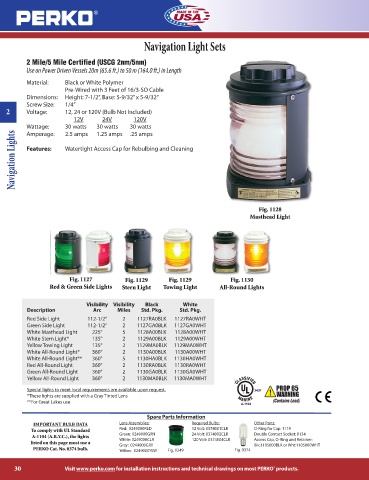

P. 30

Navigation Light Sets


          2 Mile/5 Mile Certified (USCG 2nm/5nm)
          Use on Power Driven Vessels 20m (65.6 ft.) to 50 m (164.0 ft.) in Length
          Material:             Black or White Polymer
                                       Pre-Wired with 3 Feet of 16/3-SO Cable
          Dimensions:     Height: 7-1/2”, Base: 5-9/32” x 5-9/32”
          Screw Size:        1/4”
   2      Voltage:              12, 24 or 120V (Bulb Not Included)
                                          12V  24V  120V
          Wattage:            30 watts   30 watts  30 watts
      Navigation Lights  Features:          Watertight Access Cap for Rebulbing and Cleaning
                                           .25 amps
                                 1.25 amps
          Amperage:        2.5 amps











                                                                                      Fig. 1128
                                                                                   Masthead Light










                        Fig. 1127         Fig. 1129     Fig. 1129           Fig. 1130
                 Red & Green Side Lights  Stern Light   Towing Light     All-Round Lights


                                                                Visibility    Visibility         Black                      White
          Description                                  Arc              Miles         Std. Pkg.               Std. Pkg.
          Red Side Light                       112-1/2°             2          1127RA0BLK       1127RA0WHT
          Green Side Light                   112-1/2°             2          1127GA0BLK      1127GA0WHT
          White Masthead Light            225°                 5          1128A00BLK       1128A00WHT
          White Stern Light*                    135°                 2          1129A00BLK       1129A00WHT
          Yellow Towing Light                135°                 2         1129MA0BLK      1129MA0WHT
          White All-Round Light*          360°                 2          1130A00BLK       1130A00WHT
          White All-Round Light**        360°                 5          1130HA0BLK      1130HA0WHT
          Red All-Round Light                360°                 2          1130RA0BLK       1130RA0WHT
          Green All-Round Light            360°                 2          1130GA0BLK      1130GA0WHT
          Yellow All-Round Light           360°                 2         1130MA0BLK      1130MA0WHT
          Special lights to meet local requirements are available upon request.
          *These lights are supplied with a Gray Tinted Lens
          **For Great Lakes use
                                                 Spare Parts Information
            IMPORTANT BULB DATA         Lens Assemblies:        Required Bulbs:                                      Other Parts:
                                        Red:  0249000RED        12 Volt: 0374001CLR                            O-Ring for Cap: 1119
           To comply with UL Standard
                                        Green: 0249000GRN       24 Volt: 0374002CLR                            Double Contact Socket: 0134
            A-1104 (A.B.Y.C.), the lights
                                        White: 0249000CLR       120 Volt: 0374004CLR                          Access Cap, O-Ring and Retainer:
           listed on this page must use a
                                        Gray:  0249000GRY                                                                           Blk:1105000BLK or Wht:1105000WHT
            PERKO Cat. No. 0374 bulb.   Yellow:  0249000YLW  Fig. 0249        Fig. 0374
      30              Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
                                                                                          ®
