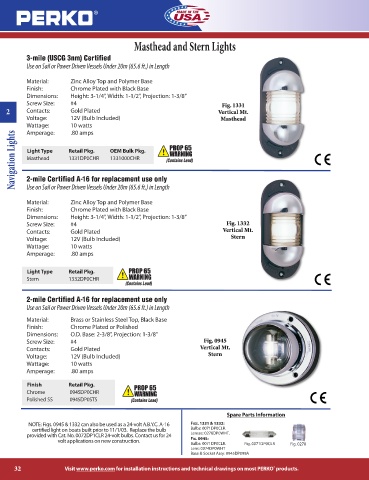

Page 32 - Perko

Masthead and Stern Lights

3-mile (USCG 3nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Zinc Alloy Top and Polymer Base
Finish: Chrome Plated with Black Base
Dimensions: Height: 3-1/4”, Width: 1-1/2”, Projection: 1-3/8”
Screw Size: #4 Fig. 1331
2 Contacts: Gold Plated Vertical Mt.
Voltage: 12V (Bulb Included) Masthead
Wattage: 10 watts
Navigation Lights Masthead Retail Pkg. OEM Bulk Pkg.
Amperage: .80 amps

Light Type
1331DP0CHR 1331000CHR

2-mile Certified A-16 for replacement use only
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Zinc Alloy Top and Polymer Base
Finish: Chrome Plated with Black Base
Dimensions: Height: 3-1/4”, Width: 1-1/2”, Projection: 1-3/8”
Screw Size: #4 Fig. 1332
Contacts: Gold Plated Vertical Mt.
Stern
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps

Light Type Retail Pkg.
Stern 1332DP0CHR

2-mile Certified A-16 for replacement use only
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Brass or Stainless Steel Top, Black Base
Finish: Chrome Plated or Polished
Dimensions: O.D. Base: 2-3/8”, Projection: 1-3/8”
Screw Size: #4 Fig. 0945
Contacts: Gold Plated Vertical Mt.
Voltage: 12V (Bulb Included) Stern
Wattage: 10 watts
Amperage: .80 amps

Finish Retail Pkg.
Chrome 0945DP0CHR
Polished SS 0945DP0STS

Spare Parts Information
NOTE: Figs. 0945 & 1332 can also be used as a 24-volt A.B.Y.C. A-16 FIGS. 1331 & 1332:
certified light on boats built prior to 11/1/03. Replace the bulb Bulbs: 0071DP0CLR.
provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24 Lenses: 0278DP0WHT.
volt applications on new construction. FIG. 0945:
Bulbs: 0071DP0CLR. Fig. 0071DP0CLR Fig. 0278
Lens: 0074DP0WHT
Base & Socket Assy: 0945DP099A
32 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
