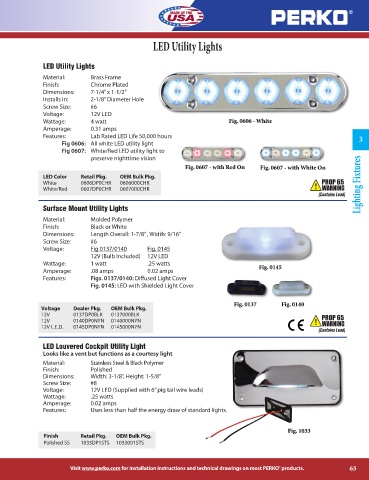

Page 63 - Perko

LED Utility Lights

LED Utility Lights
Material: Brass Frame
Finish: Chrome Plated
Dimensions: 7-1/4” x 1-1/2”
Installs In: 2-1/8” Diameter Hole
Screw Size: #6
Voltage: 12V LED
Wattage: 4 watt Fig. 0606 - White
Amperage: 0.31 amps
Features: Lab Rated LED Life 50,000 hours 3
Fig 0606: All white LED utility light
Fig 0607: White/Red LED utility light to
preserve nighttime vision
Fig. 0607 - with Red On Fig. 0607 - with White On
LED Color Retail Pkg. OEM Bulk Pkg.
White 0606DP0CHR 0606000CHR Lighting Fixtures
White/Red 0607DP0CHR 0607000CHR

Surface Mount Utility Lights
Material: Molded Polymer
Finish: Black or White
Dimensions: Length Overall: 1-7/8” , Width: 9/16”
Screw Size: #6
Voltage: Fig 0137/0140 Fig. 0145
12V (Bulb Included) 12V LED
Wattage: 1 watt .25 watts
Fig. 0145
Amperage: .08 amps 0.02 amps
Features: Figs. 0137/0140: Diffused Light Cover
Fig. 0145: LED with Shielded Light Cover

Fig. 0137 Fig. 0140
Voltage Dealer Pkg. OEM Bulk Pkg.
12V 0137DP0BLK 0137000BLK
12V 0140DP0NYN 0140000NYN
12V L.E.D. 0145DP0NYN 0145000NYN

LED Louvered Cockpit Utility Light
Looks like a vent but functions as a courtesy light
Material: Stainless Steel & Black Polymer
Finish: Polished
Dimensions: Width: 3-1/8”, Height: 1-5/8”
Screw Size: #8
Voltage: 12V LED (Supplied with 6” pig tail wire leads)
Wattage: .25 watts
Amperage: 0.02 amps
Features: Uses less than half the energy draw of standard lights.

Fig. 1033
Finish Retail Pkg. OEM Bulk Pkg.
Polished SS 1033DP1STS 1033001STS

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 63
