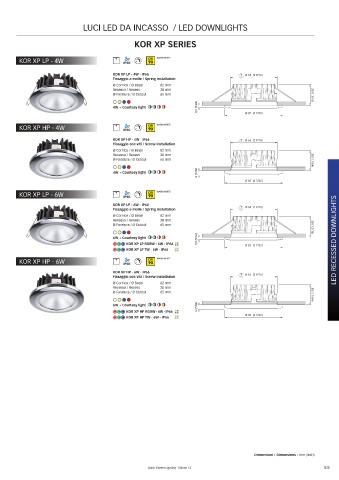

Page 55 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

KOR XP SERIES

KOR XP LP - 4W CRI WARM WHITE
90
KOR XP LP - 4W - IP66 Ø 65 (2 9/16)
Fissaggio a molle / Spring installation
Ø Cornice / Ø Bezel 82 mm
Recesso / Recess 30 mm
Ø Foratura / Ø Cutout 65 mm 30 (1 3/16)

4W + Courtesy light 3,5 (9/64) Ø 82 (3 7/32)

KOR XP HP - 4W CRI WARM WHITE
90
KOR XP HP - 4W - IP66 Ø 65 (2 9/16)
Fissaggio con viti / Screw installation
Ø Cornice / Ø Bezel 82 mm
Recesso / Recess 28 mm
Ø Foratura / Ø Cutout 65 mm 28 (1 7/64)

4W + Courtesy light 6 (7/32)
Ø 82 (3 7/32)

KOR XP LP - 6W CRI WARM WHITE
90
KOR XP LP - 6W - IP66 Ø 65 (2 9/16)
Fissaggio a molle / Spring installation
Ø Cornice / Ø Bezel 82 mm
Recesso / Recess 30 mm
Ø Foratura / Ø Cutout 65 mm 30 (1 3/16)

6W + Courtesy light 3,5 (9/64) LED RECESSED DOWNLIGHTS
KOR XP LP RGBW - 6W - IP66 Ø 82 (3 7/32)
KOR XP LP TW - 6W - IP66

KOR XP HP - 6W CRI WARM WHITE
90
KOR XP HP - 6W - IP66 Ø 65 (2 9/16)
Fissaggio con viti / Screw installation
Ø Cornice / Ø Bezel 82 mm
Recesso / Recess 28 mm
Ø Foratura / Ø Cutout 65 mm 28 (1 7/64)

6W + Courtesy light 6 (7/32)
KOR XP HP RGBW - 6W - IP66
Ø 82 (3 7/32)
KOR XP HP TW - 6W - IP66

Dimensioni / Dimensions - mm (inch)

Quick Marine Lighting - Edition 12 55
