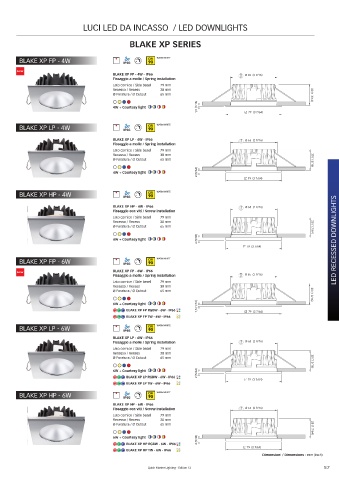

Page 57 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

BLAKE XP SERIES

BLAKE XP FP - 4W CRI WARM WHITE
90
NEW
BLAKE XP FP - 4W - IP66 Ø 65 (2 9/16)
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 79 mm
Recesso / Recess 30 mm
Ø Foratura / Ø Cutout 65 mm 30 (1 3/16)

4W + Courtesy light 1,5 (1/16) 79 (3 7/64)

BLAKE XP LP - 4W CRI WARM WHITE
90
BLAKE XP LP - 4W - IP66 Ø 65 (2 9/16)
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 79 mm
Recesso / Recess 30 mm
Ø Foratura / Ø Cutout 65 mm 30 (1 3/16)

4W + Courtesy light 2 (5/64)
79 (3 7/64)

BLAKE XP HP - 4W CRI WARM WHITE
90
BLAKE XP HP - 4W - IP66 Ø 65 (2 9/16)
Fissaggio con viti / Screw installation
Lato cornice / Side bezel 79 mm
Recesso / Recess 28 mm
Ø Foratura / Ø Cutout 65 mm 28 (1 7/64)

4W + Courtesy light 4 (5/32) LED RECESSED DOWNLIGHTS
79 (3 7/64)

BLAKE XP FP - 6W CRI WARM WHITE
90
BLAKE XP FP - 6W - IP66
NEW
Fissaggio a molle / Spring installation Ø 65 (2 9/16)
Lato cornice / Side bezel 79 mm
Recesso / Recess 30 mm
Ø Foratura / Ø Cutout 65 mm 30 (1 3/16)

6W + Courtesy light 1,5 (1/16)
BLAKE XP FP RGBW - 6W - IP66 79 (3 7/64)
BLAKE XP FP TW - 6W - IP66
BLAKE XP LP - 6W CRI WARM WHITE
90
BLAKE XP LP - 6W - IP66
Fissaggio a molle / Spring installation Ø 65 (2 9/16)
Lato cornice / Side bezel 79 mm
Recesso / Recess 30 mm
Ø Foratura / Ø Cutout 65 mm 30 (1 3/16)

6W + Courtesy light 2 (5/64)
BLAKE XP LP RGBW - 6W - IP66
79 (3 7/64)
BLAKE XP LP TW - 6W - IP66
BLAKE XP HP - 6W CRI WARM WHITE
90
BLAKE XP HP - 6W - IP66
Fissaggio con viti / Screw installation Ø 65 (2 9/16)
Lato cornice / Side bezel 79 mm
Recesso / Recess 28 mm
Ø Foratura / Ø Cutout 65 mm 28 (1 7/64)

6W + Courtesy light 4 (5/32)
BLAKE XP HP RGBW - 6W - IP66
79 (3 7/64)
BLAKE XP HP TW - 6W - IP66
Dimensioni / Dimensions - mm (inch)
Quick Marine Lighting - Edition 12 57
