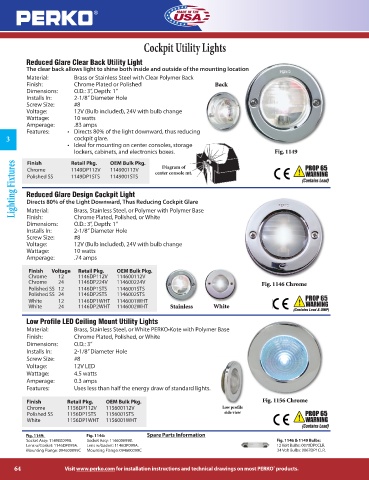

Page 64 - Perko

Cockpit Utility Lights

Reduced Glare Clear Back Utility Light
The clear back allows light to shine both inside and outside of the mounting location
Material: Brass or Stainless Steel with Clear Polymer Back
Finish: Chrome Plated or Polished Back
Dimensions: O.D.: 3”, Depth: 1”
Installs In: 2-1/8” Diameter Hole
Screw Size: #8
Voltage: 12V (Bulb included), 24V with bulb change
Wattage: 10 watts
Amperage: .83 amps
Features: • Directs 80% of the light downward, thus reducing
3 cockpit glare.
• Ideal for mounting on center consoles, storage
lockers, cabinets, and electronics boxes. Fig. 1149

Lighting Fixtures Polished SS 1149DP1STS 1149001STS center console mt.
Finish Retail Pkg. OEM Bulk Pkg.
Diagram of
Chrome 1149DP112V 114900112V

Reduced Glare Design Cockpit Light
Directs 80% of the Light Downward, Thus Reducing Cockpit Glare
Material: Brass, Stainless Steel, or Polymer with Polymer Base
Finish: Chrome Plated, Polished, or White
Dimensions: O.D.: 3”, Depth: 1”
Installs In: 2-1/8” Diameter Hole
Screw Size: #8
Voltage: 12V (Bulb included), 24V with bulb change
Wattage: 10 watts
Amperage: .74 amps
Finish Voltage Retail Pkg. OEM Bulk Pkg.
Finish Voltage Retail Pkg. OEM Bulk Pkg.
Chrome 12 1146DP112V 114600112V
Chrome 12 1146DP112V 114600112V
Chrome 24 1146DP224V 114600224V
Chrome 24 1146DP224V 114600224V
Stainless 12 1146DP1STS 1146001STS Fig. 1146 Chrome
Polished SS 12 1146DP1STS 1146001STS
Stainless 24 1146DP2STS 1146002STS
Polished SS 24 1146DP2STS 1146002STS
White 12 1146DP1WHT 1146001WHT
White 12 1146DP1WHT 1146001WHT
White 24 1146DP2WHT 1146002WHT Stainless White
White 24 1146DP2WHT 1146002WHT
Low Profile LED Ceiling Mount Utility Lights
Material: Brass, Stainless Steel, or White PERKO•Kote with Polymer Base
Finish: Chrome Plated, Polished, or White
Dimensions: O.D.: 3”
Installs In: 2-1/8” Diameter Hole
Screw Size: #8
Voltage: 12V LED
Wattage: 4.5 watts
Amperage: 0.3 amps
Features: Uses less than half the energy draw of standard lights.

Finish Retail Pkg. OEM Bulk Pkg. Fig. 1156 Chrome
Chrome 1156DP112V 115600112V Low profile
Polished SS 1156DP1STS 1156001STS side view
White 1156DP1WHT 1156001WHT

Fig. 1149: Fig. 1146: Spare Parts Information
Socket Assy: 114900099B. Socket Assy: 114600099B. Fig. 1146 & 1149 Bulbs:
Lens w/Gasket: 1146DP099A. Lens w/Gasket: 1146DP099A. 12 Volt Bulbs: 0070DP0CLR.
Mounting Flange: 094600099C Mounting Flange: 094600099C 24 Volt Bulbs: 0067DP1CLR.

64 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
