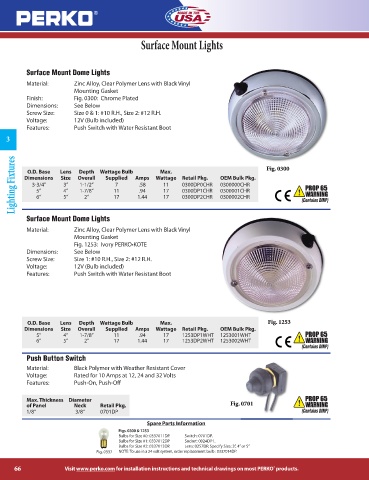

Surface Mount Lights

Surface Mount Dome Lights
Material: Zinc Alloy, Clear Polymer Lens with Black Vinyl
Mounting Gasket
Finish: Fig. 0300: Chrome Plated
Dimensions: See Below
Screw Size: Size 0 & 1: #10 R.H., Size 2: #12 R.H.
Voltage: 12V (Bulb included)
Features: Push Switch with Water Resistant Boot
3

Lighting Fixtures 3-3/4” 3” 1-1/2” 7 Amps Wattage Retail Pkg. OEM Bulk Pkg. Fig. 0300

O.D. Base Lens Depth Wattage Bulb
Max.
Dimensions Size Overall Supplied

.58
11 0300DP0CHR 0300000CHR
.94
5” 4” 1-7/8” 11
17 0300DP1CHR 0300001CHR
17 0300DP2CHR 0300002CHR
6” 5” 2” 17
1.44
Surface Mount Dome Lights
Material: Zinc Alloy, Clear Polymer Lens with Black Vinyl
Mounting Gasket
Fig. 1253: Ivory PERKO•KOTE
Dimensions: See Below
Screw Size: Size 1: #10 R.H., Size 2: #12 R.H.
Voltage: 12V (Bulb included)
Features: Push Switch with Water Resistant Boot

O.D. Base Lens Depth Wattage Bulb Max. Fig. 1253
Dimensions Size Overall Supplied Amps Wattage Retail Pkg. OEM Bulk Pkg.
5” 4” 1-7/8” 11 .94 17 1253DP1WHT 1253001WHT
6” 5” 2” 17 1.44 17 1253DP2WHT 1253002WHT

Push Button Switch
Material: Black Polymer with Weather Resistant Cover
Voltage: Rated for 10 Amps at 12, 24 and 32 Volts
Features: Push-On, Push-Off

Max. Thickness Diameter
of Panel Neck Retail Pkg. Fig. 0701
1/8” 3/8” 0701DP
Spare Parts Information
Figs. 0300 & 1253
Bulbs for Size #0: 0337011DP. Switch: 0701DP.
Bulbs for Size #1: 0337012DP Socket: 0024DP1.
Bulbs for Size #2: 0337013DP. Lens: 0257DP, Specify Size; 3”, 4” or 5”
Fig. 0337 NOTE: To use in a 24 volt system, order replacement bulb : 0337014DP.
