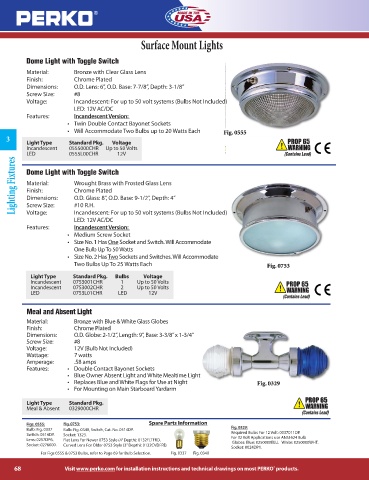

Page 68 - Perko

Surface Mount Lights

Dome Light with Toggle Switch
Material: Bronze with Clear Glass Lens
Finish: Chrome Plated
Dimensions: O.D. Lens: 6”, O.D. Base: 7-7/8”, Depth: 3-1/8”
Screw Size: #8
Voltage: Incandescent: For up to 50 volt systems (Bulbs Not Included)
LED: 12V AC/DC
Features: Incandescent Version:
• Twin Double Contact Bayonet Sockets
• Will Accommodate Two Bulbs up to 20 Watts Each Fig. 0555
3
Light Type Standard Pkg. Voltage
Incandescent 0555000CHR Up to 50 Volts
LED 0555L00CHR 12V
Lighting Fixtures Dome Light with Toggle Switch

Material: Wrought Brass with Frosted Glass Lens
Finish: Chrome Plated
Dimensions: O.D. Glass: 8”, O.D. Base: 9-1/2”, Depth: 4”
Screw Size: #10 R.H.
Voltage: Incandescent: For up to 50 volt systems (Bulbs Not Included)
LED: 12V AC/DC
Features: Incandescent Version:
• Medium Screw Socket
• Size No. 1 Has One Socket and Switch. Will Accommodate
One Bulb Up To 50 Watts
• Size No. 2 Has Two Sockets and Switches. Will Accommodate
Two Bulbs Up To 25 Watts Each Fig. 0753

Light Type Standard Pkg. Bulbs Voltage
Incandescent 0753001CHR 1 Up to 50 Volts
Incandescent 0753002CHR 2 Up to 50 Volts
LED 0753L01CHR LED 12V

Meal and Absent Light
Material: Bronze with Blue & White Glass Globes
Finish: Chrome Plated
Dimensions: O.D. Globe: 2-1/2”, Length: 9”, Base: 3-3/8” x 1-3/4”
Screw Size: #8
Voltage: 12V (Bulb Not Included)
Wattage: 7 watts
Amperage: .58 amps
Features: • Double Contact Bayonet Sockets
• Blue Owner Absent Light and White Mealtime Light
• Replaces Blue and White Flags for Use at Night Fig. 0329
• For Mounting on Main Starboard Yardarm

Light Type Standard Pkg.
Meal & Absent 0329000CHR

Figs. 0555: Fig. 0753: Spare Parts Information
Fig. 0329:
Bulb: Fig. 0337 Bulb: Fig. 0340, Switch, Cat. No. 0514DP.
Switch: 0514DP. Socket: 1323. Required Bulbs For 12 Volt: 0337011DP.
Lens: 0257DP6. Flat Lens For Newer 0753 Style (4” Depth): 0132FLTFRD. For 32 Volt Applications use ANSI 624 Bulb
Socket: 0276000. Curved Lens For Older 0753 Style (3” Depth): 0132CVDFRD. Globes: Blue: 0250000BLU. White: 0250000WHT.
Socket: 0024DP1.
For Figs 0555 & 0753 Bulbs, refer to Page 69 for Bulb Selection. Fig. 0337 Fig. 0340
68 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
