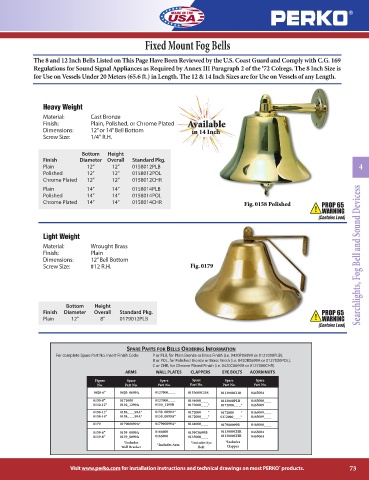

Page 73 - Perko

Fixed Mount Fog Bells

The 8 and 12 Inch Bells Listed on This Page Have Been Reviewed by the U.S. Coast Guard and Comply with C.G. 169
Regulations for Sound Signal Appliances as Required by Annex III Paragraph 2 of the ‘72 Colregs. The 8 Inch Size is
for Use on Vessels Under 20 Meters (65.6 ft.) in Length. The 12 & 14 Inch Sizes are for Use on Vessels of any Length.

Heavy Weight
Material: Cast Bronze
Finish: Plain, Polished, or Chrome Plated Available
Dimensions: 12” or 14” Bell Bottom in 14 Inch
Screw Size: 1/4” R.H.

Bottom Height
Finish Diameter Overall Standard Pkg.
Plain 12” 12” 0158012PLB 4
Polished 12” 12” 0158012POL
Chrome Plated 12” 12” 0158012CHR
Plain 14” 14” 0158014PLB
Polished 14” 14” 0158014POL
Chrome Plated 14” 14” 0158014CHR Fig. 0158 Polished

Light Weight
Material: Wrought Brass
Finish: Plain Searchlights, Fog Bell and Sound Devicess
Dimensions: 12” Bell Bottom
Screw Size: #12 R.H. Fig. 0179

Bottom Height
Finish Diameter Overall Standard Pkg.
Plain 12” 8” 0179012PLB

SPARE PARTS FOR BELLS ORDERING INFORMATION
For complete Spare Part No. Insert Finish Code: P or PLB, for Plain Bronze or Brass Finish (i.e. 0420P0699A or 0127000PLB).
B or POL, for Polished Bronze or Brass Finish (i.e. 0420B0699A or 0127000POL).
C or CHR, for Chrome Plated Finish (i.e. 0420C0699A or 0127000CHR).
ARMS WALL PLATES CLAPPERS EYE BOLTS ACORN NUTS
Figure Spare Spare Spare Spare Spare
No. Part No. Part No. 2 Part No. Part No. Part No.

0420-6” 0420_0699A 0127000_ _ _ 0153008CHR 0113000CHR 0465004_ _ _
0150-8” 0171000_ _ _ 0127000_ _ _ 0144000_ _ _ 0123000PLB 0465008_ _ _
0150-12” 0150_1299A 0150_1299B 0172000_ _ _* 0172000_ _ _* 0465009_ _ _
0158-12” 0158_ _ _99A* 0158_0099A* 0172000_ _ _* 0172000_ _ _* 0465009_ _ _
0158-14” 0158_ _ _99A* 0158_0099A* 0172000_ _ _* 0172000_ _ _* 0465009_ _ _
0179 017900099A* 017900099A* 0144000_ _ _ 017900099B 0465008_ _ _
0159-6” 0159_0099A 0166000_ _ _ 0159C0699B 0113000CHR 0465004_ _ _
0159-8” 0159_0099A 0166000_ _ _ 0153008_ _ _ 0113000CHR 0465004_ _ _
*Includes *Includes Eye *Includes
Wall Bracket *Includes Arm Bolt Clapper

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 73
