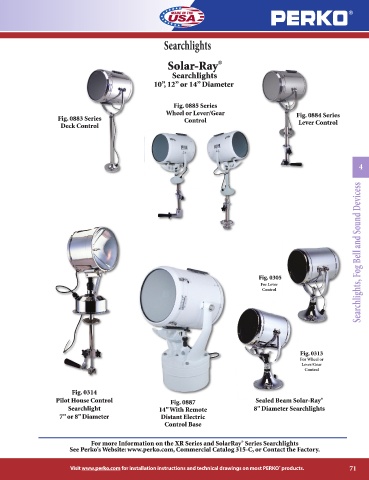

Page 71 - Perko

Searchlights

Solar-Ray ®

Searchlights
10”, 12” or 14” Diameter

Fig. 0885 Series
Wheel or Lever/Gear Fig. 0884 Series
Fig. 0883 Series Control Lever Control
Deck Control

4

Fig. 0305 Searchlights, Fog Bell and Sound Devicess
For Lever
Control

Fig. 0313
For Wheel or
Lever/Gear
Control

Fig. 0314
Pilot House Control Fig. 0887 Sealed Beam Solar-Ray ®
Searchlight 14” With Remote 8” Diameter Searchlights
7” or 8” Diameter Distant Electric
Control Base

®
For more Information on the XR Series and SolarRay Series Searchlights
See Perko’s Website: www.perko.com, Commercial Catalog 315-C, or Contact the Factory.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 71
®
