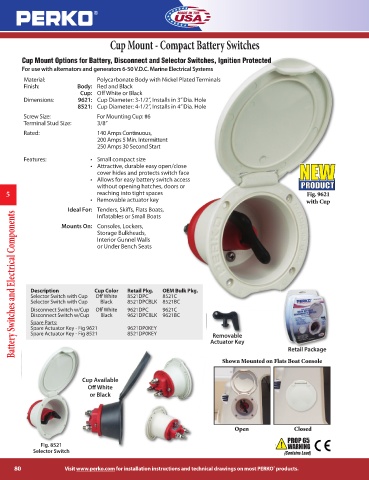

Page 80 - Perko

Cup Mount - Compact Battery Switches

Cup Mount Options for Battery, Disconnect and Selector Switches, Ignition Protected
For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
Material: Polycarbonate Body with Nickel Plated Terminals
Finish: Body: Red and Black
Cup: Off White or Black
Dimensions: 9621: Cup Diameter: 3-1/2”, Installs in 3” Dia. Hole
8521: Cup Diameter: 4-1/2”, Installs in 4” Dia. Hole
Screw Size: For Mounting Cup: #6
Terminal Stud Size: 3/8”
Rated: 140 Amps Continuous,
200 Amps 5 Min. Intermittent
250 Amps 30 Second Start

Features: • Small compact size
• Attractive, durable easy open/close
cover hides and protects switch face
• Allows for easy battery switch access
without opening hatches, doors or
5 reaching into tight spaces Fig. 9621
• Removable actuator key with Cup
Ideal For: Tenders, Skiffs, Flats Boats,
Battery Switches and Electrical Components
Inflatables or Small Boats
Mounts On: Consoles, Lockers,
Storage Bulkheads,
Interior Gunnel Walls
or Under Bench Seats

Description Cup Color Retail Pkg. OEM Bulk Pkg.
Selector Switch with Cup Off White 8521DPC 8521C
Selector Switch with Cup Black 8521DPCBLK 8521BC
Disconnect Switch w/Cup Off White 9621DPC 9621C
Disconnect Switch w/Cup Black 9621DPCBLK 9621BC

Spare Parts:
Spare Actuator Key - Fig 9621 9621DP0KEY
Spare Actuator Key - Fig 8521 8521DP0KEY
Removable
Actuator Key
Retail Package
Shown Mounted on Flats Boat Console

Cup Available
Off White
or Black

Open Closed

Fig. 8521
Selector Switch

80 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
