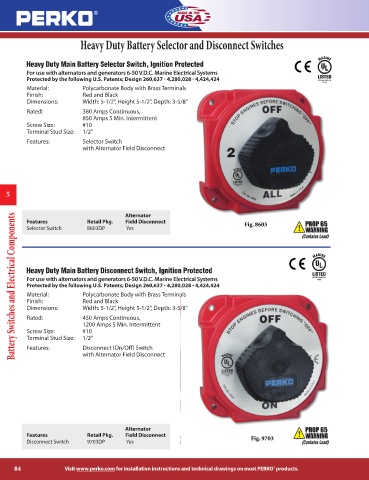

Page 84 - Perko

Heavy Duty Battery Selector and Disconnect Switches

Heavy Duty Main Battery Selector Switch, Ignition Protected
For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
Protected by the following U.S. Patents; Design 260,637 - 4,280,028 - 4,424,424
Material: Polycarbonate Body with Brass Terminals
Finish: Red and Black
Dimensions: Width: 5-1/2”, Height 5-1/2”, Depth: 3-5/8”
Rated: 380 Amps Continuous,
850 Amps 5 Min. Intermittent
Screw Size: #10
Terminal Stud Size: 1/2”
Features: Selector Switch
with Alternator Field Disconnect

5

Battery Switches and Electrical Components
Alternator
Features Retail Pkg. Field Disconnect
Fig. 8603
Selector Switch 8603DP Yes

Heavy Duty Main Battery Disconnect Switch, Ignition Protected
For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
Protected by the following U.S. Patents; Design 260,637 - 4,280,028 - 4,424,424
Material: Polycarbonate Body with Brass Terminals
Finish: Red and Black
Dimensions: Width: 5-1/2”, Height 5-1/2”, Depth: 3-5/8”
Rated: 450 Amps Continuous,
1200 Amps 5 Min. Intermittent
Screw Size: #10
Terminal Stud Size: 1/2”
Features: Disconnect (On/Off) Switch
with Alternator Field Disconnect

Alternator
Features Retail Pkg. Field Disconnect Fig. 9703
Disconnect Switch 9703DP Yes

84 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
