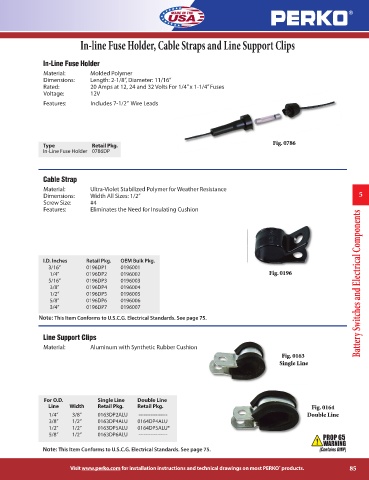

Page 85 - Perko

In-line Fuse Holder, Cable Straps and Line Support Clips

In-Line Fuse Holder
Material: Molded Polymer
Dimensions: Length: 2-1/8”, Diameter: 11/16”
Rated: 20 Amps at 12, 24 and 32 Volts For 1/4” x 1-1/4” Fuses
Voltage: 12V
Features: Includes 7-1/2” Wire Leads

Fig. 0786
Type Retail Pkg.
In-Line Fuse Holder 0786DP

Cable Strap
Material: Ultra-Violet Stabilized Polymer for Weather Resistance
Dimensions: Width All Sizes: 1/2” 5
Screw Size: #4
Features: Eliminates the Need for Insulating Cushion

I.D. Inches Retail Pkg. OEM Bulk Pkg.
3/16” 0196DP1 0196001
1/4” 0196DP2 0196002 Fig. 0196
5/16” 0196DP3 0196003 Battery Switches and Electrical Components
3/8” 0196DP4 0196004
1/2” 0196DP5 0196005
5/8” 0196DP6 0196006
3/4” 0196DP7 0196007
Note: This Item Conforms to U.S.C.G. Electrical Standards. See page 75.

Line Support Clips
Material: Aluminum with Synthetic Rubber Cushion
Fig. 0163
Single Line

For O.D. Single Line Double Line
Line Width Retail Pkg. Retail Pkg. Fig. 0164
1/4” 3/8” 0163DP2ALU ----------------- Double Line
3/8” 1/2” 0163DP4ALU 0164DP4ALU
1/2” 1/2” 0163DP5ALU 0164DP5ALU*
5/8” 1/2” 0163DP6ALU -----------------

Note: This Item Conforms to U.S.C.G. Electrical Standards. See page 75.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 85
®
