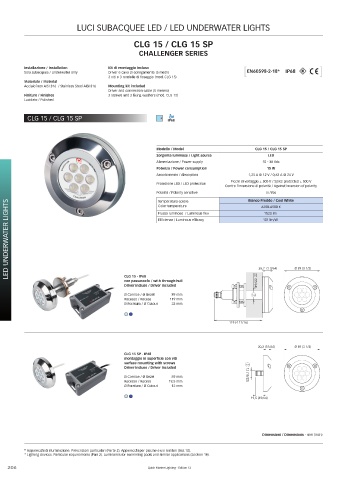

Page 206 - Quick

LUCI SUBACQUEE LED / LED UNDERWATER LIGHTS

CLG 15 / CLG 15 SP
CHALLENGER SERIES

Installazione / Installation Kit di montaggio incluso
Solo subacquea / Underwater only Driver e cavo di collegamento (5 metri) [ EN60598-2-18* IP68 ]
3 viti e 3 rondelle di fissaggio (mod. CLG 15)
Materiale / Material
Acciaio inox AISI 316 / Stainless Steel AISI 316 Mounting kit included
Driver and connection cable (5 meters)
Finiture / Finishes 3 screws and 3 fixing washers (mod. CLG 15)
Lucidato / Polished

CLG 15 / CLG 15 SP

Modello / Model CLG 15 / CLG 15 SP
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc
Potenza / Power consumption 15 W
Assorbimento / Absorption 1,25 A @ 12 V / 0,63 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive Bianco Freddo / Cool White
sì /Yes
LED UNDERWATER LIGHTS Efficienza / Luminous efficacy 101 lm/W
Temperatura colore
Color temperature
6200-6500 K
1520 lm
Flusso luminoso / Luminous flux

CLG 15 - IP68
con passascafo / with through-hull
Driver incluso / Driver included 22 (55/64) 26,7 (1 3/64) Ø 89 (3 1/2)
Ø Cornice / Ø Bezel 89 mm
Recesso / Recess 119 mm
Ø Foratura / Ø Cutout 22 mm

119 (4 11/16)

20,2 (51/64) Ø 89 (3 1/2)
CLG 15 SP - IP68
montaggio in superficie con viti
surface mounting with screws
Driver incluso / Driver included
Ø Cornice / Ø Bezel 89 mm 12 (15/32)
Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 12 mm

19,5 (49/64)

Dimensioni / Dimensions - mm (inch)

* Apparecchi di illuminazione. Prescrizioni particolari (Parte 2). Apparecchi per piscine e usi similari (Sez.18).
* Lighting devices. Particular requirements (Part 2). Luminaires for swimming pools and similar applications (Section 18).

206 Quick Marine Lighting - Edition 12
