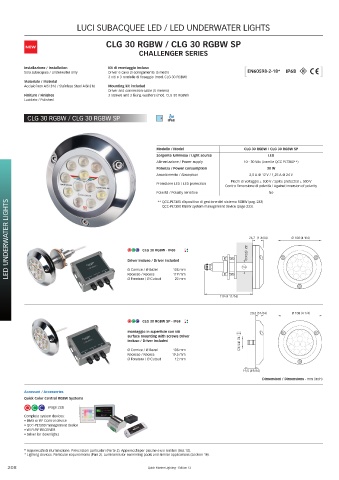

Page 208 - Quick

LUCI SUBACQUEE LED / LED UNDERWATER LIGHTS

CLG 30 RGBW / CLG 30 RGBW SP
NEW
CHALLENGER SERIES

Installazione / Installation Kit di montaggio incluso
Solo subacquea / Underwater only Driver e cavo di collegamento (5 metri) [ EN60598-2-18* IP68 ]
3 viti e 3 rondelle di fissaggio (mod. CLG 30 RGBW)
Materiale / Material
Acciaio inox AISI 316 / Stainless Steel AISI 316 Mounting kit included
Driver and connection cable (5 meters)
Finiture / Finishes 3 screws and 3 fixing washers (mod. CLG 30 RGBW)
Lucidato / Polished

CLG 30 RGBW / CLG 30 RGBW SP

Modello / Model CLG 30 RGBW / CLG 30 RGBW SP
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc (tramite QCC PLT300**)
Potenza / Power consumption 30 W
Assorbimento / Absorption 2,5 A @ 12 V / 1,25 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive No
LED UNDERWATER LIGHTS Driver incluso / Driver included 22 (55/64) 26,7 (1 3/64) Ø 108 (4 1/4)
** QCC-PLT300 dispositivo di gestione del sistema RGBW (pag. 233)
QCC-PLT300 RGBW system management device (page 233).

CLG 30 RGBW - IP68

Ø Cornice / Ø Bezel
108 mm
Recesso / Recess
119 mm
22 mm
Ø Foratura / Ø Cutout
119 (4 11/16)

20,2 (51/64) Ø 108 (4 1/4)
CLG 30 RGBW SP - IP68
montaggio in superficie con viti
surface mounting with screws Driver
incluso / Driver included 12 (15/32)
Ø Cornice / Ø Bezel 108 mm
Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 12 mm

19,5 (49/64)
Dimensioni / Dimensions - mm (inch)
Accessori / Accessories
Quick Color Control RGBW Systems
(Page 233)
Complete system devices:
• DMX or RF Control device
• QCC-PLT300 management device
• WI FI/RF RECEIVER
• Driver for downlights

* Apparecchi di illuminazione. Prescrizioni particolari (Parte 2). Apparecchi per piscine e usi similari (Sez.18).
* Lighting devices. Particular requirements (Part 2). Luminaires for swimming pools and similar applications (Section 18).

208 Quick Marine Lighting - Edition 12
