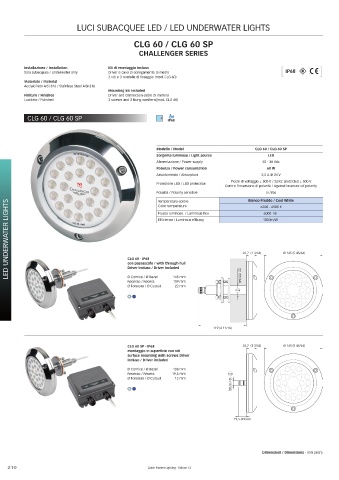

P. 210
LUCI SUBACQUEE LED / LED UNDERWATER LIGHTS
CLG 60 / CLG 60 SP
CHALLENGER SERIES
Installazione / Installation Kit di montaggio incluso
Solo subacquea / Underwater only Driver e cavo di collegamento (5 metri) [ IP68 ]
3 viti e 3 rondelle di fissaggio (mod. CLG 60)
Materiale / Material
Acciaio inox AISI 316 / Stainless Steel AISI 316
Mounting kit included
Finiture / Finishes Driver and connection cable (5 meters)
Lucidato / Polished 3 screws and 3 fixing washers((mod. CLG 60)
CLG 60 / CLG 60 SP
Modello / Model CLG 60 / CLG 60 SP
Sorgente luminosa / Light source LED
Alimentazione / Power supply 20 - 30 Vdc
Potenza / Power consumption 60 W
Assorbimento / Absorption 2,5 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
sì /Yes
Polarità / Polarity sensitive Bianco Freddo / Cool White
LED UNDERWATER LIGHTS CLG 60 - IP68 Efficienza / Luminous efficacy 26,7 (1 3/64) 100 lm/W Ø 145 (5 45/64)
Temperatura colore
Color temperature
6200 - 6500 K
6000 lm
Flusso luminoso / Luminous flux
con passascafo / with through-hull
Driver incluso / Driver included
Ø Cornice / Ø Bezel
Recesso / Recess
119 mm
22 mm
Ø Foratura / Ø Cutout 145 mm 22 (55/64)
119 (4 11/16)
CLG 60 SP - IP68 26,7 (1 3/64) Ø 145 (5 45/64)
montaggio in superficie con viti
surface mounting with screws Driver
incluso / Driver included
Ø Cornice / Ø Bezel 108 mm
Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 12 mm
12 (15/32)
19,5 (49/64)
Dimensioni / Dimensions - mm (inch)
210 Quick Marine Lighting - Edition 12
