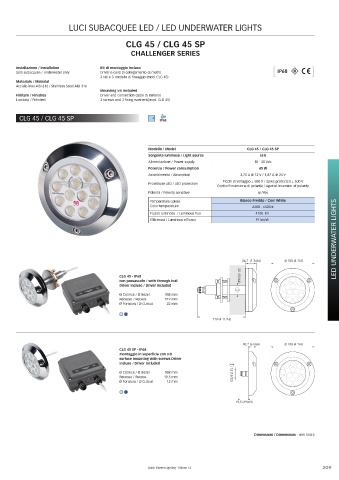

LUCI SUBACQUEE LED / LED UNDERWATER LIGHTS
CLG 45 / CLG 45 SP
CHALLENGER SERIES
Installazione / Installation Kit di montaggio incluso
Solo subacquea / Underwater only Driver e cavo di collegamento (5 metri) [ IP68 ]
3 viti e 3 rondelle di fissaggio (mod. CLG 45)
Materiale / Material
Acciaio inox AISI 316 / Stainless Steel AISI 316
Mounting kit included
Finiture / Finishes Driver and connection cable (5 meters)
Lucidato / Polished 3 screws and 3 fixing washers((mod. CLG 45)
CLG 45 / CLG 45 SP
Modello / Model CLG 45 / CLG 45 SP
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc
Potenza / Power consumption 45 W
Assorbimento / Absorption 3,75 A @ 12 V / 1,87 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive sì /Yes
LED UNDERWATER LIGHTS
Temperatura colore Bianco Freddo / Cool White
Color temperature 6200 - 6500 K
Flusso luminoso / Luminous flux 4100 lm
Efficienza / Luminous efficacy 91 lm/W
26,7 (1 3/64) Ø 108 (4 1/4)
CLG 45 - IP68 22 (55/64)
con passascafo / with through-hull
Driver incluso / Driver included
Ø Cornice / Ø Bezel 108 mm
Recesso / Recess 119 mm
Ø Foratura / Ø Cutout 22 mm
119 (4 11/16)
20,2 (51/64) Ø 108 (4 1/4)
CLG 45 SP - IP68
montaggio in superficie con viti
surface mounting with screws Driver
incluso / Driver included
Ø Cornice / Ø Bezel 108 mm
Recesso / Recess 19,5 mm 12 (15/32)
Ø Foratura / Ø Cutout 12 mm
19,5 (49/64)
Dimensioni / Dimensions - mm (inch)
Quick Marine Lighting - Edition 12 209
