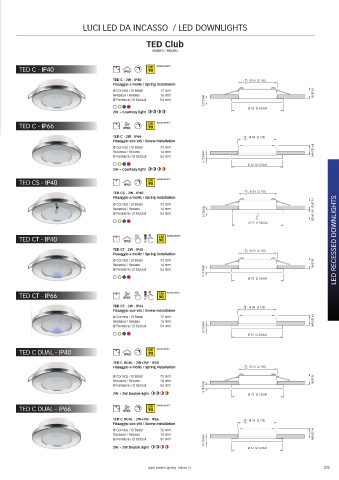

Page 39 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

TED Club
Modelli / Models

TED C - IP40 CRI WARM WHITE
90
TED C - 2W - IP40 Ø 54 (2 1/8)
Fissaggio a molle / Spring installation
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 16 mm 16 (5/8)
Ø Foratura / Ø Cutout 54 mm 5 (13/64)
Ø 72 (2 53/64)
2W + Courtesy light

TED C - IP66 CRI WARM WHITE
90
TED C - 2W - IP66 Ø 54 (2 1/8)
Fissaggio con viti / Screw installation
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 14 mm 14 (35/64)
Ø Foratura / Ø Cutout 54 mm 5 (13/64)
Ø 72 (2 53/64)
2W + Courtesy light
TED CS - IP40 CRI WARM WHITE
90
TED CS - 2W - IP40 Ø 54 (2 1/8)
Fissaggio a molle / Spring installation
Ø Cornice / Ø Bezel 72 mm 16 (5/8)
Recesso / Recess 16 mm
Ø Foratura / Ø Cutout 54 mm 5 (13/64) 15 (19/32)
Ø 72 (2 53/64)

TED CT - IP40 CRI WARM WHITE LED RECESSED DOWNLIGHTS
90
TED CT - 2W - IP40 Ø 54 (2 1/8)
Fissaggio a molle / Spring installation
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 16 mm 16 (5/8)
Ø Foratura / Ø Cutout 54 mm 5 (13/64)
Ø 72 (2 53/64)

TED CT - IP66 CRI WARM WHITE
90
TED CT - 2W - IP66 Ø 54 (2 1/8)
Fissaggio con viti / Screw installation
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 14 mm 14 (35/64)
Ø Foratura / Ø Cutout 54 mm 5 (13/64)
Ø 72 (2 53/64)

TED C DUAL - IP40 CRI WARM WHITE
90
TED C DUAL - 2W+2W - IP40
Fissaggio a molle / Spring installation Ø 54 (2 1/8)
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 16 mm 16 (5/8)
Ø Foratura / Ø Cutout 54 mm 5 (13/64)
2W + 2W Double light Ø 72 (2 53/64)

TED C DUAL - IP66 CRI WARM WHITE
90
TED C DUAL - 2W+2W - IP66 Ø 54 (2 1/8)
Fissaggio con viti / Screw installation
Ø Cornice / Ø Bezel 72 mm
Recesso / Recess 14 mm 14 (35/64)
Ø Foratura / Ø Cutout 54 mm 5 (13/64)
2W + 2W Double light Ø 72 (2 53/64)

Quick Marine Lighting - Edition 12 39
