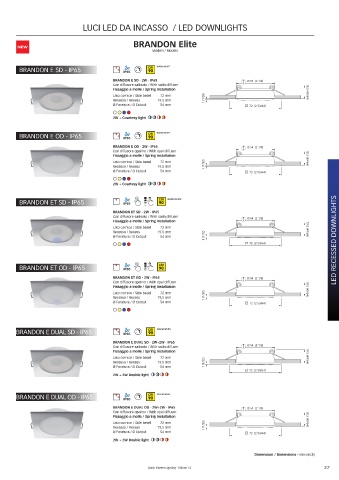

Page 37 - Quick
P. 37
LUCI LED DA INCASSO / LED DOWNLIGHTS
BRANDON Elite
NEW
Modelli / Models
BRANDON E SD - IP65 CRI WARM WHITE
90
BRANDON E SD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore satinato / With satin diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Lato cornice / Side bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm 72 (2 53/64)
2W + Courtesy light
BRANDON E OD - IP65 CRI WARM WHITE
90
BRANDON E OD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Lato cornice / Side bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm 72 (2 53/64)
2W + Courtesy light
BRANDON ET SD - IP65 CRI WARM WHITE
90
BRANDON ET SD - 2W - IP65
Con diffusore satinato / With satin diffuser Ø 54 (2 1/8)
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 72 mm 19,5 (49/64)
Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 54 mm 1 (1/32) LED RECESSED DOWNLIGHTS
72 (2 53/64)
BRANDON ET OD - IP65 CRI
90
BRANDON ET OD - 2W - IP65 Ø 54 (2 1/8)
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Lato cornice / Side bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm 72 (2 53/64)
BRANDON E DUAL SD - IP65 CRI WARM WHITE
90
BRANDON E DUAL SD - 2W+2W - IP65
Con diffusore satinato / With satin diffuser Ø 54 (2 1/8)
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 72 mm 19,5 (49/64)
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm
72 (2 53/64)
2W + 2W Double light
BRANDON E DUAL OD - IP65 CRI WARM WHITE
90
BRANDON E DUAL OD - 2W+2W - IP65 Ø 54 (2 1/8)
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 19,5 (49/64)
Lato cornice / Side bezel 72 mm
Recesso / Recess 19,5 mm 1 (1/32)
Ø Foratura / Ø Cutout 54 mm 72 (2 53/64)
2W + 2W Double light
Dimensioni / Dimensions - mm (inch)
