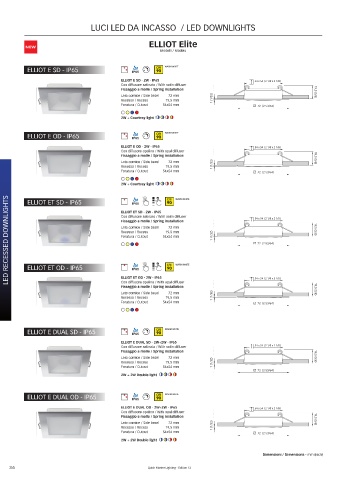

Page 36 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

ELLIOT Elite
NEW
Modelli / Models

ELLIOT E SD - IP65 CRI WARM WHITE
90
ELLIOT E SD - 2W - IP65 54 x 54 (2 1/8 x 2 1/8 )
Con diffusore satinato / With satin diffuser
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 72 mm 19,5 (5/8)
Recesso / Recess 19,5 mm 1 (1/32)
Foratura / Cutout 54x54 mm 72 (2 53/64)

2W + Courtesy light

ELLIOT E OD - IP65 CRI WARM WHITE
90
ELLIOT E OD - 2W - IP65 54 x 54 (2 1/8 x 2 1/8 )
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 72 mm 19,5 (5/8)
Recesso / Recess 19,5 mm 1 (1/32)
Foratura / Cutout 54x54 mm 72 (2 53/64)

2W + Courtesy light WARM WHITE

LED RECESSED DOWNLIGHTS Con diffusore satinato / With satin diffuser 1 (1/32) 72 (2 53/64) 19,5 (5/8)
CRI
ELLIOT ET SD - IP65
90
ELLIOT ET SD - 2W - IP65
54 x 54 (2 1/8 x 2 1/8 )
Fissaggio a molle / Spring installation
Lato cornice / Side bezel
72 mm
19,5 mm
Recesso / Recess
Foratura / Cutout
54x54 mm

WARM WHITE
CRI
ELLIOT ET OD - IP65
90
ELLIOT ET OD - 2W - IP65
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation 54 x 54 (2 1/8 x 2 1/8 )
Lato cornice / Side bezel 72 mm 19,5 (5/8)
Recesso / Recess 19,5 mm 1 (1/32)
Foratura / Cutout 54x54 mm 72 (2 53/64)

ELLIOT E DUAL SD - IP65 CRI WARM WHITE
90
ELLIOT E DUAL SD - 2W+2W - IP65
Con diffusore satinato / With satin diffuser 54 x 54 (2 1/8 x 2 1/8 )
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 72 mm 19,5 (5/8)
Recesso / Recess 19,5 mm 1 (1/32)
Foratura / Cutout 54x54 mm
72 (2 53/64)
2W + 2W Double light

ELLIOT E DUAL OD - IP65 CRI WARM WHITE
90
ELLIOT E DUAL OD - 2W+2W - IP65 54 x 54 (2 1/8 x 2 1/8 )
Con diffusore opalino / With opal diffuser
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 72 mm 19,5 (5/8)
Recesso / Recess 19,5 mm 1 (1/32)
Foratura / Cutout 54x54 mm 72 (2 53/64)
2W + 2W Double light

Dimensioni / Dimensions - mm (inch)

36 Quick Marine Lighting - Edition 12
