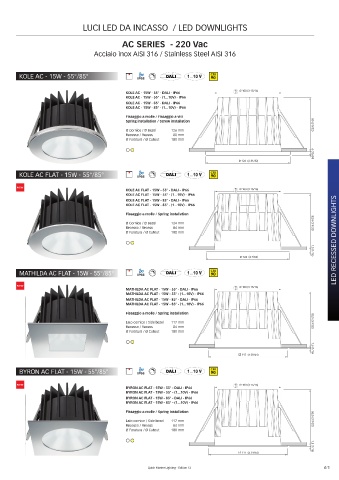

Page 61 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

AC SERIES - 220 Vac
Acciaio inox AISI 316 / Stainless Steel AISI 316

KOLE AC - 15W - 55°/85° CRI
90

KOLE AC - 15W - 55° - DALI - IP66 Ø 100 (3 15/16)
KOLE AC - 15W - 55° - (1...10V) - IP66
KOLE AC - 15W - 85° - DALI - IP66
KOLE AC - 15W - 85° - (1...10V) - IP66
Fissaggio a molle / Fissaggio a viti
Spring installation / Screw installation 80 (3 5/32)
Ø Cornice / Ø Bezel 126 mm
Recesso / Recess 80 mm
Ø Foratura / Ø Cutout 100 mm

6 (15/64)
Ø 126 (4 31/32)
KOLE AC FLAT - 15W - 55°/85° CRI
90

NEW Ø 100 (3 15/16)
KOLE AC FLAT - 15W - 55° - DALI - IP66
KOLE AC FLAT - 15W - 55° - (1...10V) - IP66
LED RECESSED DOWNLIGHTS
KOLE AC FLAT - 15W - 85° - DALI - IP66
KOLE AC FLAT - 15W - 85° - (1...10V) - IP66
Fissaggio a molle / Spring installation
Ø Cornice / Ø Bezel 124 mm 83,5 (3 9/32)
Recesso / Recess 84 mm
Ø Foratura / Ø Cutout 100 mm

Ø 124 (4 7/84) 1,5 (1/16)

MATHILDA AC FLAT - 15W - 55°/85° CRI
90
NEW Ø 100 (3 15/16)
MATHILDA AC FLAT - 15W - 55° - DALI - IP66
MATHILDA AC FLAT - 15W - 55° - (1...10V) - IP66
MATHILDA AC FLAT - 15W - 85° - DALI - IP66
MATHILDA AC FLAT - 15W - 85° - (1...10V) - IP66
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 117 mm 83,5 (3 9/32)
Recesso / Recess 84 mm
Ø Foratura / Ø Cutout 100 mm

117 (4 39/64) 1,5 (1/16)

BYRON AC FLAT - 15W - 55°/85° CRI
90
NEW Ø 100 (3 15/16)
BYRON AC FLAT - 15W - 55° - DALI - IP66
BYRON AC FLAT - 15W - 55° - (1...10V) - IP66
BYRON AC FLAT - 15W - 85° - DALI - IP66
BYRON AC FLAT - 15W - 85° - (1...10V) - IP66
Fissaggio a molle / Spring installation
Lato cornice / Side bezel 117 mm 83,5 (3 9/32)
Recesso / Recess 84 mm
Ø Foratura / Ø Cutout 100 mm
1,5 (1/16)

117 (4 39/64)

Quick Marine Lighting - Edition 12 61
