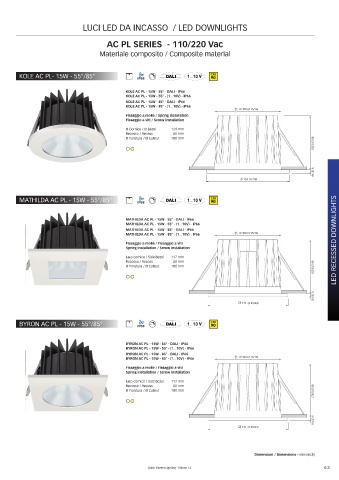

Page 63 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

AC PL SERIES - 110/220 Vac
Materiale composito / Composite material

KOLE AC PL- 15W - 55°/85° CRI
90

KOLE AC PL - 15W - 55° - DALI - IP66
KOLE AC PL - 15W - 55° - (1...10V) - IP66
KOLE AC PL - 15W - 85° - DALI - IP66
KOLE AC PL - 15W - 85° - (1...10V) - IP66
Ø 100 (3 15/16)
Fissaggio a molle / Spring installation
Fissaggio a viti / Screw installation
Ø Cornice / Ø Bezel 124 mm
Recesso / Recess 80 mm
Ø Foratura / Ø Cutout 100 mm 80 (3 5/32)

Ø 124 (4 7/8) 5 (3/16)

LED RECESSED DOWNLIGHTS
MATHILDA AC PL - 15W - 55°/85° CRI
90

MATHILDA AC PL - 15W - 55° - DALI - IP66
MATHILDA AC PL - 15W - 55° - (1...10V) - IP66
MATHILDA AC PL - 15W - 85° - DALI - IP66
MATHILDA AC PL - 15W - 85° - (1...10V) - IP66 Ø 100 (3 15/16)
Fissaggio a molle / Fissaggio a viti
Spring installation / Screw installation
Lato cornice / Side bezel 117 mm
Recesso / Recess 80 mm
Ø Foratura / Ø Cutout 100 mm 80 (3 5/32)

117 (4 39/64) 5 (3/16)

BYRON AC PL - 15W - 55°/85° CRI
90

BYRON AC PL - 15W - 55° - DALI - IP66
BYRON AC PL - 15W - 55° - (1...10V) - IP66
BYRON AC PL - 15W - 85° - DALI - IP66
BYRON AC PL - 15W - 85° - (1...10V) - IP66 Ø 100 (3 15/16)
Fissaggio a molle / Fissaggio a viti
Spring installation / Screw installation
Lato cornice / Side bezel 117 mm
Recesso / Recess 80 mm
Ø Foratura / Ø Cutout 100 mm 80 (3 5/32)

117 (4 39/64) 5 (3/16)

Dimensioni / Dimensions - mm (inch)

Quick Marine Lighting - Edition 12 63
