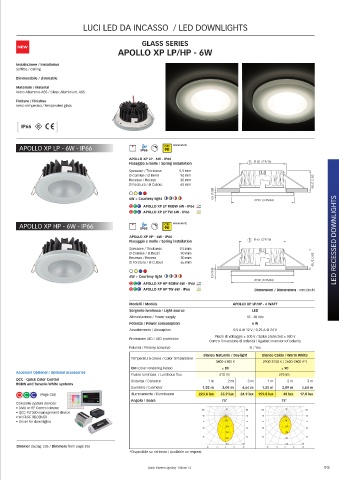

Page 95 - Quick

LUCI LED DA INCASSO / LED DOWNLIGHTS

GLASS SERIES
NEW
APOLLO XP LP/HP - 6W

Installazione / Installation
Soffitto / Ceiling
Dimmerabile / dimmable
Materiale / Material
Vetro-Alluminio-ABS / Glass, Aluminium, ABS
Finiture / Finishes
Vetro temperato / Temperated glass

[ IP66 ]

APOLLO XP LP - 6W - IP66 CRI WARM WHITE
90
APOLLO XP LP - 6W - IP66
Fissaggio a molle / Spring installation Ø 65 (2 9/16)
Spessore / Thickness 5,5 mm
Ø Cornice / Ø Bezel 90 mm
Recesso / Recess 30 mm 30 (1 3/16)
Ø Foratura / Ø Cutout 65 mm
5,5 (7/32)
6W + Courtesy light Ø 90 (3 35/64)
APOLLO XP LP RGBW 6W - IP66
APOLLO XP LP TW 6W - IP66

APOLLO XP HP - 6W - IP66 CRI WARM WHITE
90
APOLLO XP HP - 6W - IP66 Ø 65 (2 9/16)
Fissaggio a molle / Spring installation LED RECESSED DOWNLIGHTS
Spessore / Thickness 9,5 mm
Ø Cornice / Ø Bezel 90 mm
Recesso / Recess 30 mm 30 (1 3/16)
Ø Foratura / Ø Cutout 65 mm
9,5 (3/8)
6W + Courtesy light
Ø 90 (3 35/64)
APOLLO XP HP RGBW 6W - IP66
APOLLO XP HP TW 6W - IP66 Dimensioni / Dimensions - mm (inch)

Modelli / Models APOLLO XP LP/HP - 6 WATT
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc
Potenza / Power consumption 6 W
Assorbimento / Absorption 0,5 A @ 12 V / 0,25 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive Sì / Yes
Bianco Naturale / Daylight Bianco Caldo / Warm White
Temperatura colore / Color temperature
3800-4100 K 2900-3100 K ( 2600-2800 K*)
CRI (color rendering index) ≥ 80 ≥ 90
Accessori Optional / Optional accessories
Flusso luminoso / Luminous flux 410 lm 295 lm
QCC - Quick Color Control Distanza / Distance 1 m 2 m 3 m 1 m 2 m 3 m
RGBW and Tunable White systems
Diametro / Diameter 1,55 m 3,09 m 4,64 m 1,55 m 3,09 m 4,64 m
(Page 238) Illuminamento / Illuminance 223,8 lux 55,9 lux 24,9 lux 159,8 lux 40 lux 17,8 lux
75°
75°
Angolo / Beam Angolo del Fascio 75° Angolo del Fascio 75°
Complete system devices:
• DMX or RF Control device 105 50 105 105 50 105
• QCC-PLT300 management device
• WI FI/RF RECEIVER 90 90 90 90
• Driver for downlights 75 50 75 75 50 75
100 100
60 60 60 60
150 150
45 45 45 45
200 200
250 cd 250 cd
Dimmer da pag. 236 / Dimmers from page 236 30 15 0 15 30 30 15 0 15 30
*Disponibile su richiesta / Available on request
APOLLO 6W APOLLO 6W
luce naturale luce calda
Quick Marine Lighting - Edition 12 95
