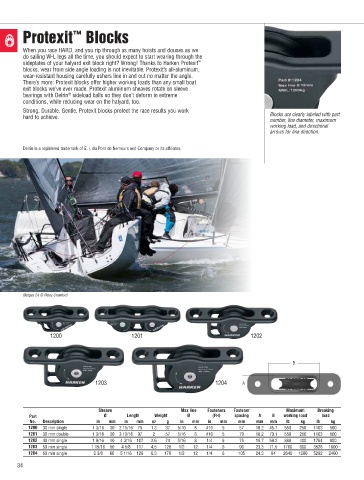

Protexit Blocks
™

When you race HARD, and you rip through as many hoists and douses as we
do sailing W-L legs all the time, you should expect to start wearing through the
sideplates of your halyard exit block right? Wrong! Thanks to Harken Protexit ™
blocks, wear from side angle loading is not inevitable. Protexit’s all-aluminum,
wear-resistant housing carefully ushers line in and out no matter the angle.
There’s more: Protexit blocks offer higher working loads than any small boat
exit blocks we’ve ever made. Protexit aluminum sheaves rotate on sleeve
bearings with Delrin sideload balls so they don’t deform in extreme
®
conditions, while reducing wear on the halyard, too.
Strong. Durable. Gentle. Protexit blocks protect the race results you work
hard to achieve. Blocks are clearly labeled with part
number, line diameter, maximum
working load, and directional
arrows for line direction.

Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Melges 24 © Petey Crawford

1200 1201 1202

B

1203 1204 A

Sheave Max line Fasteners Fastener Maximum Breaking
Part Ø Length Weight Ø (FH) spacing A B working load load
No. Description in mm in mm oz g in mm in mm mm mm mm lb kg lb kg
1200 30 mm single 1 3/16 30 2 15/16 75 1.3 37 5/16 8 #10 5 57 18.2 45.7 550 250 1103 500
1201 30 mm double 1 3/16 30 3 13/16 97 2 57 5/16 8 #10 5 79 18.2 70.1 550 250 1103 500
1202 40 mm single 1 9/16 40 4 3/16 107 2.6 74 5/16 8 1/4 6 75 19.7 59.2 880 400 1764 800
1203 50 mm single 1 15/16 50 4 5/8 117 4.5 128 1/2 12 1/4 6 90 23.3 71.5 1760 800 3528 1600
1204 60 mm single 2 3/8 60 5 1/16 129 6.3 179 1/2 12 1/4 6 105 24.3 84 2640 1200 5292 2400
