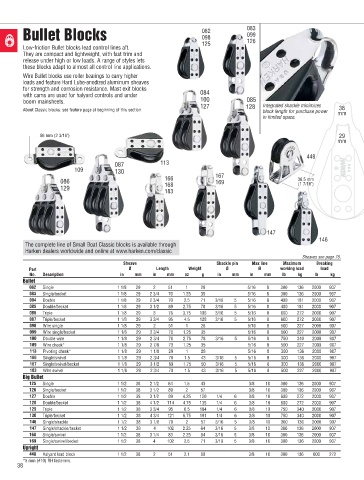

Bullet Blocks 082 083
099
098
Low-friction Bullet blocks lead control lines aft. 125 126
They are compact and lightweight, with fast trim and
release under high or low loads. A range of styles lets
these blocks adapt to almost all control line applications.
Wire Bullet blocks use roller bearings to carry higher
loads and feature Hard Lube-anodized aluminum sheaves
for strength and corrosion resistance. Mast exit blocks
with cams are used for halyard controls and under 084
boom mainsheets. 100 085 Integrated shackle minimizes
38
About Classic blocks: see feature page at beginning of this section. 127 128 block length for purchase power mm
in limited space.

56 mm (2 3/16") 29
mm

448
087 113
109 130
086 166 167 36.5 mm
169
168
(1 7/16")
129
183

147
146
The complete line of Small Boat Classic blocks is available through
Harken dealers worldwide and online at www.harken.com/classic
Sheaves see page 78.
Sheave Shackle pin Max line Maximum Breaking
Part Ø Length Weight Ø Ø working load load
No. Description in mm in mm oz g in mm in mm lb kg lb kg
Bullet
082 Single 1 1/8 29 2 51 1 28 5/16 8 300 136 2000 907
083 Single/becket 1 1/8 29 2 3/4 70 1.25 35 5/16 8 300 136 2000 907
084 Double 1 1/8 29 2 3/4 70 2.5 71 3/16 5 5/16 8 400 181 2000 907
085 Double/becket 1 1/8 29 3 1/2 89 2.75 78 3/16 5 5/16 8 400 181 2000 907
086 Triple 1 1/8 29 3 76 3.75 106 3/16 5 5/16 8 600 272 2000 907
087 Triple/becket 1 1/8 29 3 3/4 95 4.5 128 3/16 5 5/16 8 600 272 2000 907
098 Wire single 1 1/8 29 2 51 1 28 5/16 8 500 227 2000 907
099 Wire single/becket 1 1/8 29 2 3/4 70 1.25 35 5/16 8 500 227 2000 907
100 Double wire 1 1/8 29 2 3/4 70 2.75 78 3/16 5 5/16 8 750 340 2000 907
109 Wire cheek* 1 1/8 29 2 7/8 73 1.25 35 5/16 8 500 227 2000 907
113 Pivoting cheek* 1 1/8 29 1 1/8 29 1 28 5/16 8 300 136 2000 907
166 Single/swivel 1 1/8 29 2 3/4 70 1.5 43 3/16 5 5/16 8 300 136 2000 907
167 Single/swivel/becket 1 1/8 29 3 1/2 89 1.75 50 3/16 5 5/16 8 300 136 2000 907
183 Wire swivel 1 1/8 29 2 3/4 70 1.5 43 3/16 5 5/16 8 500 227 2000 907
Big Bullet
125 Single 1 1/2 38 2 1/2 64 1.5 43 3/8 10 300 136 2000 907
126 Single/becket 1 1/2 38 3 1/2 89 2 57 3/8 10 300 136 2000 907
127 Double 1 1/2 38 3 1/2 89 4.25 120 1/4 6 3/8 10 600 272 2000 907
128 Double/becket 1 1/2 38 4 1/2 114 4.75 135 1/4 6 3/8 10 600 272 2000 907
129 Triple 1 1/2 38 3 3/4 95 6.5 184 1/4 6 3/8 10 750 340 2000 907
130 Triple/becket 1 1/2 38 4 3/4 121 6.75 191 1/4 6 3/8 10 750 340 2000 907
146 Single/shackle 1 1/2 38 3 1/8 79 2 57 3/16 5 3/8 10 300 136 2000 907
147 Single/shackle/becket 1 1/2 38 4 102 2.25 64 3/16 5 3/8 10 300 136 2000 907
168 Single/swivel 1 1/2 38 3 1/4 83 2.25 64 3/16 5 3/8 10 300 136 2000 907
169 Single/swivel/becket 1 1/2 38 4 102 2.5 71 3/16 5 3/8 10 300 136 2000 907
Upright
448 Halyard lead block 1 1/2 38 2 51 2.1 60 3/8 10 300 136 600 272
*5 mm (#10) RH fasteners.
