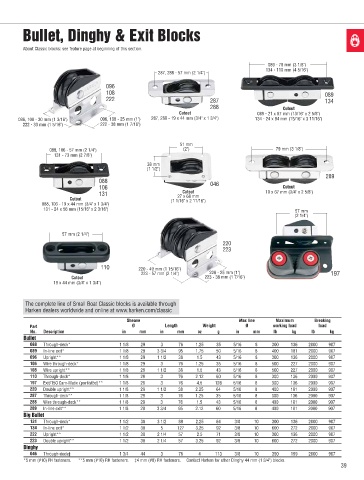

Bullet, Dinghy & Exit Blocks

About Classic blocks: see feature page at beginning of this section.

089 - 79 mm (3 1/8")
134 - 110 mm (4 5/16")
287, 288 - 57 mm (2 1/4")
096
108 089
222 287 134
288 Cutout
Cutout 089 - 21 x 67 mm (13/16" x 2 5/8")
096, 108 - 30 mm (1 3/16") 096, 108 - 25 mm (1") 287, 288 - 19 x 44 mm (3/4" x 1 3/4") 134 - 24 x 94 mm (15/16" x 3 11/16")
222 - 33 mm (1 5/16") 222 - 38 mm (1 7/16")

51 mm
088, 106 - 57 mm (2 1/4") (2") 79 mm (3 1/8")
131 - 73 mm (2 7/8")
38 mm
(1 1/2")
289
088 046
106 Cutout
131 Cutout 19 x 67 mm (3/4" x 2 5/8")
27 x 68 mm
Cutout (1 1/16" x 2 11/16")
088, 106 - 19 x 44 mm (3/4" x 1 3/4")
131 - 24 x 56 mm (15/16" x 2 3/16") 57 mm
(2 1/4")

57 mm (2 1/4")
220
223

110 220 - 49 mm (1 15/16")
223 - 57 mm (2 1/4") 220 - 25 mm (1") 197
Cutout 223 - 38 mm (1 7/16")
19 x 44 mm (3/4" x 1 3/4")

The complete line of Small Boat Classic blocks is available through
Harken dealers worldwide and online at www.harken.com/classic
Sheave Max line Maximum Breaking
Part Ø Length Weight Ø working load load
No. Description in mm in mm oz g in mm lb kg lb kg
Bullet
088 Through-deck* 1 1/8 29 3 76 1.25 35 5/16 8 300 136 2000 907
089 In-line exit* 1 1/8 29 3 3/4 95 1.75 50 5/16 8 400 181 2000 907
096 Upright** 1 1/8 29 1 1/2 38 1.5 43 5/16 8 300 136 2000 907
106 Wire through-deck* 1 1/8 29 3 76 1.25 35 5/16 8 500 227 2000 907
108 Wire upright** 1 1/8 29 1 1/2 38 1.5 43 5/16 8 500 227 2000 907
110 Through-deck* 1 1/8 29 3 76 2.12 60 5/16 8 300 136 2000 907
197 Exit/150 Cam-Matic (port/stbd)** 1 1/8 29 3 76 4.5 128 5/16 8 300 136 2000 907
220 Double upright** 1 1/8 29 1 1/2 38 2.25 64 5/16 8 400 181 2000 907
287 Through-deck** 1 1/8 29 3 76 1.25 35 5/16 8 300 136 2000 907
288 Wire through-deck** 1 1/8 29 3 76 1.5 43 5/16 8 400 181 2000 907
289 In-line exit** 1 1/8 29 3 3/4 95 2.12 60 5/16 8 400 181 2000 907
Big Bullet
131 Through-deck* 1 1/2 38 3 1/2 89 2.25 64 3/8 10 300 136 2000 907
134 In-line exit* 1 1/2 38 5 127 3.25 92 3/8 10 600 272 2000 907
222 Upright** 1 1/2 38 2 1/4 57 2.5 71 3/8 10 300 136 2000 907
223 Double upright** 1 1/2 38 2 1/4 57 3.25 92 3/8 10 600 272 2000 907
Dinghy
046 Through-deck‡ 1 3/4 44 3 76 4 113 3/8 10 350 159 2000 907
*5 mm (#10) FH fasteners. **5 mm (#10) RH fasteners. ‡4 mm (#8) RH fasteners. Contact Harken for other Dinghy 44 mm (1 3/4") blocks.
