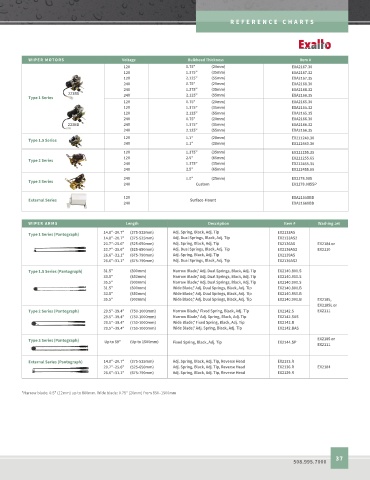

REFERENCE CHAR T S
Q uali t y Marine Equipmen t
WIPER MOTORS Voltage Bulkhead Thickness Item #
12V 0.75" (20mm) EXA2167.30
12V 1.375" (35mm) EXA2167.32
12V 2.125" (55mm) EXA2167.35
24V 0.75" (20mm) EXA2168.30
24V 1.375" (35mm) EXA2168.32
12V 223BS
Type 1 Series 24V 2.125" (55mm) EXA2168.35
12V 0.75" (20mm) EXA2165.30
12V 1.375" (35mm) EXA2165.32
12V 2.125" (55mm) EXA2165.35
24V 0.75" (20mm) EXA2166.30
223BD 24V 1.375" (35mm) EXA2166.32
24V 2.125" (55mm) EXA2166.35
12V 12V 1.1" (28mm)
Type 1.5 Series EX211240.30
24V 1.1" (28mm) EX212440.30
12V 1.375" (35mm) EX211255.35
12V 2.5" (65mm) EX211255.65
Type 2 Series
24V 1.375" (35mm) EX212455.35
24V 2.5" (65mm) EX212455.65
24V 1.0" (25mm) EX2178.085
Type 3 Series
24V Custom EX2178.085SP
12V EXA2165XBD
External Series Surface-Mount
24V EXA2166XBD
WIPER ARMS Length Description Item # Washing Jet
Type 1 Series (Pantograph) 14.8"–20.7" (375-525mm) Adj. Spring, Black, Adj. Tip EX2133AS
14.8"–20.7" (375-525mm) Adj. Dual Springs, Black, Adj. Tip EX2133AS2
20.7"–25.6" (525-650mm) Adj. Spring, Black, Adj. Tip EX2136AS EX2184 or
20.7"–25.6" (525-650mm) Adj. Dual Springs, Black, Adj. Tip EX2136AS2 EX2110
26.6"–31.1" (675-790mm) Adj. Spring, Black, Adj. Tip EX2139AS
26.6"–31.1" (675-790mm) Adj. Dual Springs, Black, Adj. Tip EX2139AS2
Type 1.5 Series (Pantograph) 31.5" (800mm) Narrow Blade,* Adj. Dual Springs, Black, Adj. Tip EX2140.800.S
33.5" (850mm) Narrow Blade,* Adj. Dual Springs, Black, Adj. Tip EX2140.850.S
35.5" (900mm) Narrow Blade,* Adj. Dual Springs, Black, Adj. Tip EX2140.900.S
31.5" (800mm) Wide Blade,* Adj. Dual Springs, Black, Adj. Tip EX2140.800.B
33.5" (850mm) Wide Blade,* Adj. Dual Springs, Black, Adj. Tip EX2140.850.B
35.5" (900mm) Wide Blade,* Adj. Dual Springs, Black, Adj. Tip EX2140.900.B EX2185,
EX2185L or
Type 2 Series (Pantograph) 29.5"–39.4" (750-1000mm) Narrow Blade,* Fixed Spring, Black, Adj. Tip EX2142.S EX2111
29.5"–39.4" (750-1000mm) Narrow Blade,* Adj. Spring, Black, Adj. Tip EX2142.SAS
29.5"–39.4" (750-1000mm) Wide Blade,* Fixed Spring, Black, Adj. Tip EX2142.B
29.5"–39.4" (750-1000mm) Wide Blade,* Adj. Spring, Black, Adj. Tip EX2142.BAS
Type 3 Series (Pantograph) Up to 59" (Up to 1500mm) Fixed Spring, Black, Adj. Tip EX2144.SP EX2185 or
EX2111
External Series (Pantograph) 14.8"–20.7" (375-525mm) Adj. Spring, Black, Adj. Tip, Reverse Head EX2133.R
20.7"–25.6" (525-650mm) Adj. Spring, Black, Adj. Tip, Reverse Head EX2136.R EX2184
26.6"–31.1" (675-790mm) Adj. Spring, Black, Adj. Tip, Reverse Head EX2139.R
*Narrow blade: 0.5" (12mm) up to 800mm. Wide blade: 0.75" (20mm) from 850–1500mm
