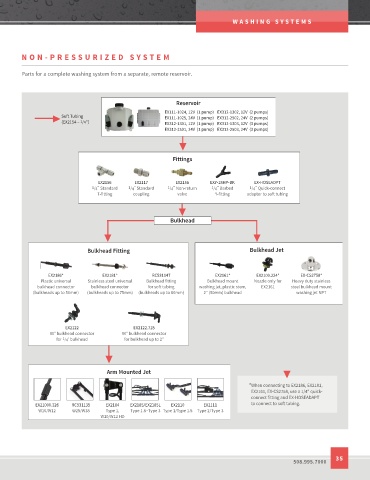

WASHING S Y S TEMS

NON-PRES SURIZED S Y S TEM

Parts for a complete washing system from a separate, remote reservoir.

Reservoir
EX111-1024, 12V (1 pump) EX312-1302, 12V (2 pumps)
Soft Tubing EX111-1025, 24V (1 pump) EX312-2502, 24V (2 pumps)
(EX2154 – 1/4") EX312-1301, 12V (1 pump) EX312-1303, 12V (3 pumps)
t
EX312-2501, 24V (1 pump) EX312-2503, 24V (3 pumps)
t

Fittings

EX2156 EX2117 EX2155 EXY-18HP-BK EX-HOSEADPT
"
"
"
"
"
1/4 Standard 1/4 Standard 1/4 Non-return 1/4 Barbed 1/4 Quick-connect
T-fitting coupling valve Y-fitting adaptor to soft tubing
t
Bulkhead
t t

Bulkhead Fitting Bulkhead Jet

EX2186* EX2181* RC531147 EX2161* EX2100.224* EX-CS2758*
Plastic universal Stainless steel universal Bulkhead fitting Bulkhead mount Nozzle only for Heavy duty stainless
bulkhead connector bulkhead connector for soft tubing washing jet, plastic stem, EX2161 steel bulkhead mount
(bulkheads up to 50mm) (bulkheads up to 75mm) (bulkheads up to 80mm) 2" (50mm) bulkhead washing jet NPT

EX2122 EX2122.715
90° bulkhead connector 90° bulkhead connector
for 1/4’ bulkhead for bulkhead up to 2”

t

Arm Mounted Jet
t
*When connecting to EX2186, EX2181,
EX2161, EX-CS2758, use a 1/4" quick-
connect fitting and EX-HOSEADAPT
EX21000.326 RC531135 EX2184 EX2185/EX2185L EX2110 EX2111 to connect to soft tubing.
W10/W12 W25/W38 Type 1, Type 1.5–Type 3 Type 1/Type 1.5 Type 2/Type 3
W10/W12 HD
