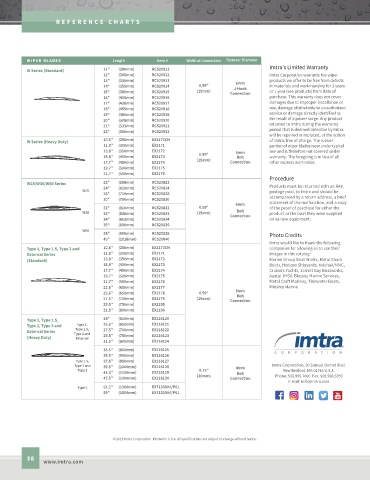

Page 38 - Imtra_Wipers

REFERENCE CHAR T S

WIPER BLADES Length Item # Width at Connection Fastener Diameter
Imtra’s Limited Warranty
W Series (Standard) 11" (280mm) RC520911
12" (305mm) RC520912 Imtra Corporation warrants the wiper
13" (330mm) RC520913 6mm products we offer to be free from defects
14" (355mm) RC520914 0.59" J-Hook in materials and workmanship for 3 years
15" (380mm) RC520915 (15mm) Connection or 1 year (see products) from date of
16" (405mm) RC520916 purchase. This warranty does not cover
17" (430mm) RC520917 damages due to improper installation or
18" (455mm) RC520918 use, damage attributable to unauthorized
19" (480mm) RC520919 service or damage directly identified as
20" (508mm) RC520920 the result of a power surge. Any product
21" (533mm) RC520921 returned to Imtra during the warranty
22" (560mm) RC520922 period that is deemed defective by Imtra
will be repaired or replaced, at the option
W Series (Heavy Duty) 10.6" (250mm) EX2170CN of Imtra, free of charge. The rubber
11.8" (300mm) EX2171 portion of wiper blades wear under typical
13.8" (350mm) EX2172 5mm use and is therefore not covered under
15.8" (400mm) EX2173 0.59" Bolt warranty. The foregoing is in lieu of all
17.7" (450mm) EX2174 (15mm) Connection other express warranties.
19.7" (500mm) EX2175
21.7" (550mm) EX2176
Procedure
W25/W38/W50 Series 22" (559mm) RC520822 Products must be returned with an RA#,
24" (610mm) RC520824
W25 postage paid, to Imtra and should be
28" (710mm) RC520828
30" (760mm) RC520830 accompanied by a return address, a brief
6mm statement of the malfunction, and a copy
32" (810mm) RC520832 0.59" of the proof of purchase for either the
Bolt
W38 33" (838mm) RC520833 (15mm) Connection product or the boat they were supplied
34" (863mm) RC520834 on as new equipment.
35" (890mm) RC520835
W50
38" (965mm) RC520838 Photo Credits
40" (1016mm) RC520840
Imtra would like to thank the following
Type 1, Type 1.5, Type 2 and 10.6" (250mm) EX2170CN companies for allowing us to use their
External Series 11.8" (300mm) EX2171 images in this catalog:
(Standard) 13.8" (350mm) EX2172 Marine Group Boat Works, Metal Shark
15.8" (400mm) EX2173 Boats, Horizon Shipyards, Kvichak/MMC,
17.7" (450mm) EX2174 Cruisers Yachts, Jarrett Bay Boatworks,
19.7" (500mm) EX2175 Austal JHSV, Blessey Marine Services,
21.7" (550mm) EX2176 Metal Craft Mariney, Tidewater Boats,
23.6" (600mm) EX2177 Midship Marine
25.6" (650mm) EX2178 0.59" 5mm
Bolt
27.5" (700mm) EX2179 (15mm) Connection
29.5" (750mm) EX2195
31.5" (800mm) EX2196
Type 1, Type 1.5, 24" (610mm) EX216120
Type 2, Type 3 and Type 1, 25.6" (650mm) EX216121
Type 1.5,
External Series Type 2 and 27.5" (700mm) EX216122
(Heavy Duty) External 29.5" (750mm) EX216123
31.5" (800mm) EX216124
33.5" (850mm) EX216125
35.5" (900mm) EX216126
Type 1.5, 37.5" (950mm) EX216127
Type 2 and 39.5" (1000mm) EX216128 8mm Imtra Corporation, 30 Samuel Barnet Blvd.
Type 3 0.75" New Bedford, MA 02745 U.S.A.
43.3" (1100mm) EX216129 Bolt
47.5" (1200mm) EX216130 (20mm) Connection Phone: 508.995.7000 Fax: 508.998.5359
E-mail: info@imtra.com
Type 3 51.2" (1300mm) EXT130S04/P01
59" (1500mm) EXT150S04/P01
