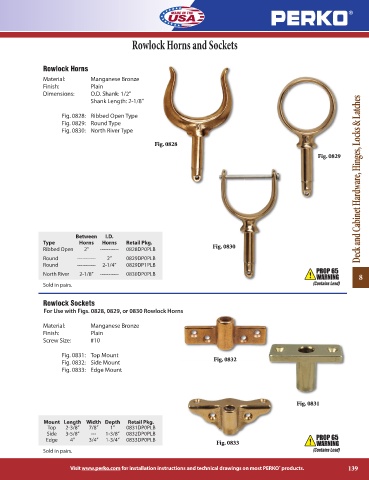

Page 139 - Perko

Rowlock Horns and Sockets

Rowlock Horns

Material: Manganese Bronze
Finish: Plain
Dimensions: O.D. Shank: 1/2”
Shank Length: 2-1/8”

Fig. 0828: Ribbed Open Type
Fig. 0829: Round Type
Fig. 0830: North River Type

Fig. 0828
Fig. 0829 Deck and Cabinet Hardware, Hinges, Locks & Latches

Between I.D.
Type Horns Horns Retail Pkg.
Ribbed Open 2” ----------- 0828DP0PLB Fig. 0830
Round ----------- 2” 0829DP0PLB
Round ----------- 2-1/4” 0829DP1PLB
North River 2-1/8” ----------- 0830DP0PLB
8
Sold in pairs.

Rowlock Sockets
For Use with Figs. 0828, 0829, or 0830 Rowlock Horns

Material: Manganese Bronze
Finish: Plain
Screw Size: #10

Fig. 0831: Top Mount
Fig. 0832: Side Mount Fig. 0832
Fig. 0833: Edge Mount

Fig. 0831

Mount Length Width Depth Retail Pkg.
Top 2-3/8” 7/8” 1” 0831DP0PLB
Side 3-5/8” --- 1-3/8” 0832DP0PLB
Edge 4” 3/4” 1-3/4” 0833DP0PLB
Fig. 0833
Sold in pairs.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 139
®
