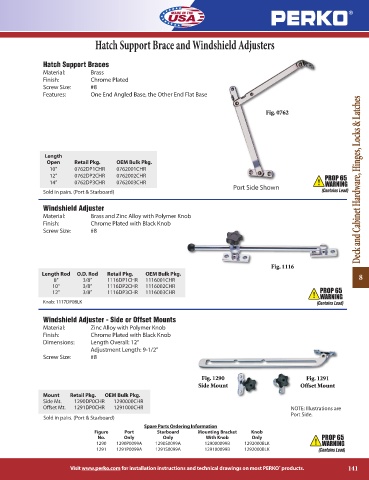

Page 141 - Perko

Hatch Support Brace and Windshield Adjusters

Hatch Support Braces
Material: Brass
Finish: Chrome Plated
Screw Size: #8
Features: One End Angled Base, the Other End Flat Base

Fig. 0762

Length
Open Retail Pkg. OEM Bulk Pkg.
10” 0762DP1CHR 0762001CHR
12” 0762DP2CHR 0762002CHR
14” 0762DP3CHR 0762003CHR Deck and Cabinet Hardware, Hinges, Locks & Latches
Port Side Shown
Sold in pairs. (Port & Starboard)

Windshield Adjuster
Material: Brass and Zinc Alloy with Polymer Knob
Finish: Chrome Plated with Black Knob
Screw Size: #8

Fig. 1116
Length Rod O.D. Rod Retail Pkg. OEM Bulk Pkg. 8
8” 3/8” 1116DP1CHR 1116001CHR
10” 3/8” 1116DP2CHR 1116002CHR
12” 3/8” 1116DP3CHR 1116003CHR
Knob: 1117DP0BLK

Windshield Adjuster - Side or Offset Mounts
Material: Zinc Alloy with Polymer Knob
Finish: Chrome Plated with Black Knob
Dimensions: Length Overall: 12”
Adjustment Length: 9-1/2”
Screw Size: #8

Fig. 1290 Fig. 1291
Side Mount Offset Mount
Mount Retail Pkg. OEM Bulk Pkg.
Side Mt. 1290DP0CHR 1290000CHR
Offset Mt. 1291DP0CHR 1291000CHR NOTE: Illustrations are
Port Side.
Sold in pairs. (Port & Starboard)
Spare Parts Ordering Information
Figure Port Starboard Mounting Bracket Knob
No. Only Only With Knob Only
1290 1290P0099A 1290S0099A 129000099B 1292000BLK
1291 1291P0099A 1291S0099A 129100099B 1292000BLK

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 141
®
