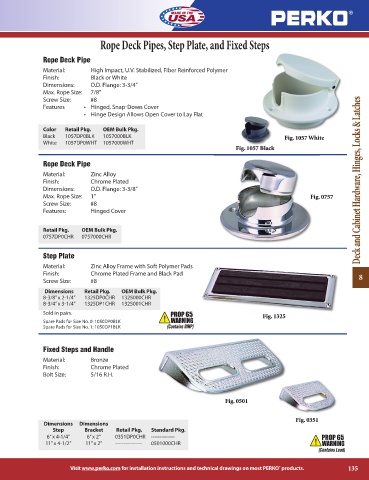

Page 135 - Perko

Rope Deck Pipes, Step Plate, and Fixed Steps

Rope Deck Pipe
Material: High Impact, U.V. Stabilized, Fiber Reinforced Polymer
Finish: Black or White
Dimensions: O.D. Flange: 3-3/4”
Max. Rope Size: 7/8”
Screw Size: #8
Features • Hinged, Snap-Down Cover
• Hinge Design Allows Open Cover to Lay Flat

Color Retail Pkg. OEM Bulk Pkg.
Black 1057DP0BLK 1057000BLK Fig. 1057 White
White 1057DP0WHT 1057000WHT
Fig. 1057 Black

Rope Deck Pipe
Material: Zinc Alloy
Finish: Chrome Plated Deck and Cabinet Hardware, Hinges, Locks & Latches
Dimensions: O.D. Flange: 3-3/8”
Max. Rope Size: 1” Fig. 0757
Screw Size: #8
Features: Hinged Cover

Retail Pkg. OEM Bulk Pkg.
0757DP0CHR 0757000CHR

Step Plate
Material: Zinc Alloy Frame with Soft Polymer Pads
Finish: Chrome Plated Frame and Black Pad 8
Screw Size: #8
Dimensions Retail Pkg. OEM Bulk Pkg.
8-3/8” x 2-1/4” 1325DP0CHR 1325000CHR
8-3/4” x 3-1/4” 1325DP1CHR 1325001CHR
Sold in pairs.
Fig. 1325
Spare Pads for Size No. 0: 1050DP0BLK
Spare Pads for Size No. 1: 1050DP1BLK

Fixed Steps and Handle
Material: Bronze
Finish: Chrome Plated
Bolt Size: 5/16 R.H.

Fig. 0501

Fig. 0351
Dimensions Dimensions
Step Bracket Retail Pkg. Standard Pkg.
6” x 4-1/4” 6” x 2” 0351DP0CHR --------------
11” x 4-1/2” 11” x 2” ---------------- 0501000CHR

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 135
