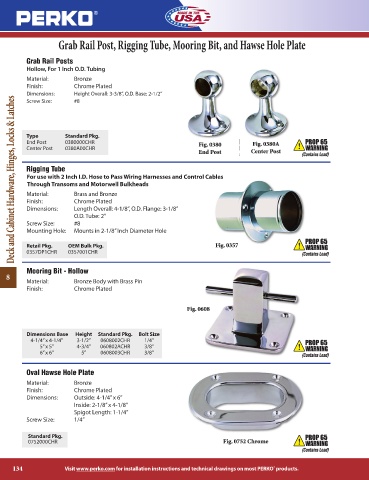

Grab Rail Post, Rigging Tube, Mooring Bit, and Hawse Hole Plate

Grab Rail Posts
Hollow, For 1 Inch O.D. Tubing
Material: Bronze
Finish: Chrome Plated
Dimensions: Height Overall: 3-3/8”, O.D. Base: 2-1/2”
Deck and Cabinet Hardware, Hinges, Locks & Latches
Screw Size: #8

Type Standard Pkg.
End Post 0380000CHR Fig. 0380 Fig. 0380A
Center Post 0380A00CHR
End Post Center Post

Rigging Tube
For use with 2 Inch I.D. Hose to Pass Wiring Harnesses and Control Cables
Through Transoms and Motorwell Bulkheads
Material: Brass and Bronze
Finish: Chrome Plated
Dimensions: Length Overall: 4-1/8”, O.D. Flange: 3-1/8”
O.D. Tube: 2”
Screw Size: #8
Mounting Hole: Mounts in 2-1/8” Inch Diameter Hole

Retail Pkg. OEM Bulk Pkg. Fig. 0357
0357DP1CHR 0357001CHR

Mooring Bit - Hollow
8
Material: Bronze Body with Brass Pin
Finish: Chrome Plated

Fig. 0608

Dimensions Base Height Standard Pkg. Bolt Size
4-1/4” x 4-1/4” 3-1/2” 0608002CHR 1/4”
5” x 5” 4-3/4” 060802ACHR 3/8”
6” x 6” 5” 0608003CHR 3/8”

Oval Hawse Hole Plate

Material: Bronze
Finish: Chrome Plated
Dimensions: Outside: 4-1/4” x 6”
Inside: 2-1/8” x 4-1/8”
Spigot Length: 1-1/4”
Screw Size: 1/4”

Standard Pkg.
0752000CHR Fig. 0752 Chrome

134 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
