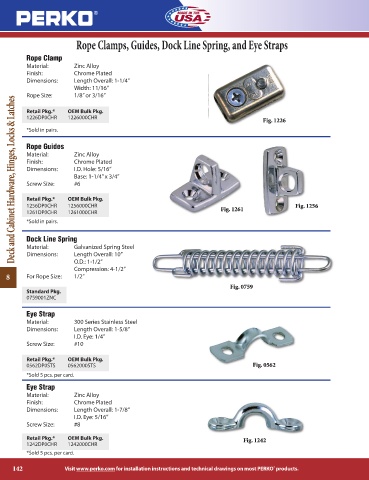

Rope Clamps, Guides, Dock Line Spring, and Eye Straps

Rope Clamp
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Length Overall: 1-1/4”
Width: 11/16”
Rope Size: 1/8” or 3/16”
Deck and Cabinet Hardware, Hinges, Locks & Latches
Retail Pkg.* OEM Bulk Pkg.
1226DP0CHR 1226000CHR
Fig. 1226
*Sold in pairs.

Rope Guides
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: I.D. Hole: 5/16”
Base: 1-1/4” x 3/4”
Screw Size: #6

Retail Pkg.* OEM Bulk Pkg.
1256DP0CHR 1256000CHR Fig. 1256
Fig. 1261
1261DP0CHR 1261000CHR
*Sold in pairs.

Dock Line Spring
Material: Galvanized Spring Steel
Dimensions: Length Overall: 10”
O.D.: 1-1/2”
Compression: 4-1/2”
8 For Rope Size: 1/2”
Fig. 0759
Standard Pkg.
0759001ZNC

Eye Strap
Material: 300 Series Stainless Steel
Dimensions: Length Overall: 1-5/8”
I.D. Eye: 1/4”
Screw Size: #10

Retail Pkg.* OEM Bulk Pkg.
0562DP0STS 0562000STS Fig. 0562
*Sold 5 pcs. per card.
Eye Strap
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Length Overall: 1-7/8”
I.D. Eye: 5/16”
Screw Size: #8

Retail Pkg.* OEM Bulk Pkg. Fig. 1242
1242DP0CHR 1242000CHR
*Sold 5 pcs. per card.

142 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
