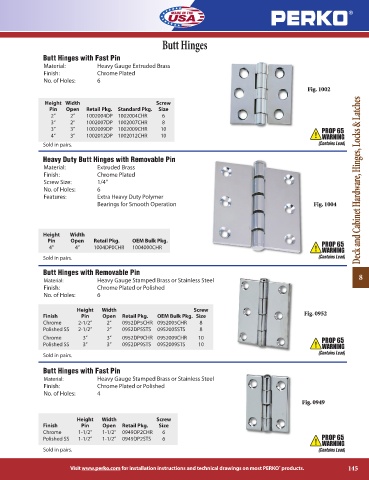

Page 145 - Perko

Butt Hinges

Butt Hinges with Fast Pin
Material: Heavy Gauge Extruded Brass
Finish: Chrome Plated
No. of Holes: 6
Fig. 1002

Height Width Screw
Pin Open Retail Pkg. Standard Pkg. Size
2” 2” 1002004DP 1002004CHR 6
3” 2” 1002007DP 1002007CHR 8
3” 3” 1002009DP 1002009CHR 10
4” 3” 1002012DP 1002012CHR 10
Sold in pairs.

Heavy Duty Butt Hinges with Removable Pin
Material: Extruded Brass
Finish: Chrome Plated
Screw Size: 1/4” Deck and Cabinet Hardware, Hinges, Locks & Latches
No. of Holes: 6
Features: Extra Heavy Duty Polymer
Bearings for Smooth Operation Fig. 1004

Height Width
Pin Open Retail Pkg. OEM Bulk Pkg.
4” 4” 1004DP0CHR 1004000CHR
Sold in pairs.

Butt Hinges with Removable Pin
Material: Heavy Gauge Stamped Brass or Stainless Steel 8
Finish: Chrome Plated or Polished
No. of Holes: 6

Height Width Screw
Finish Pin Open Retail Pkg. OEM Bulk Pkg. Size Fig. 0952
Chrome 2-1/2” 2” 0952DP5CHR 0952005CHR 8
Polished SS 2-1/2” 2” 0952DP5STS 0952005STS 8
Chrome 3” 3” 0952DP9CHR 0952009CHR 10
Polished SS 3” 3” 0952DP9STS 0952009STS 10
Sold in pairs.

Butt Hinges with Fast Pin
Material: Heavy Gauge Stamped Brass or Stainless Steel
Finish: Chrome Plated or Polished
No. of Holes: 4
Fig. 0949

Height Width Screw
Finish Pin Open Retail Pkg. Size
Chrome 1-1/2” 1-1/2” 0949DP2CHR 6
Polished SS 1-1/2” 1-1/2” 0949DP2STS 6
Sold in pairs.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 145
®
