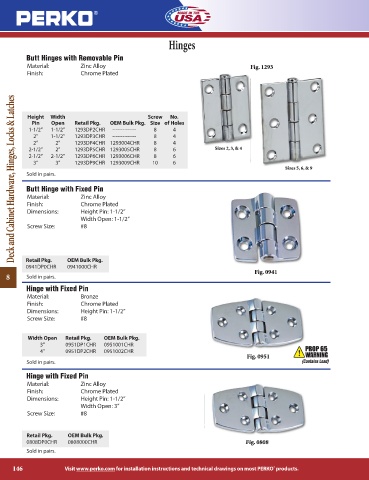

Page 146 - Perko

Hinges

Butt Hinges with Removable Pin
Material: Zinc Alloy Fig. 1293
Finish: Chrome Plated

Deck and Cabinet Hardware, Hinges, Locks & Latches

Height Width Screw No.
Pin Open Retail Pkg. OEM Bulk Pkg. Size of Holes
1-1/2” 1-1/2” 1293DP2CHR -------------- 8 4
2” 1-1/2” 1293DP3CHR -------------- 8 4
2” 2” 1293DP4CHR 1293004CHR 8 4
2-1/2” 2” 1293DP5CHR 1293005CHR 8 6 Sizes 2, 3, & 4
2-1/2” 2-1/2” 1293DP6CHR 1293006CHR 8 6
3” 3” 1293DP9CHR 1293009CHR 10 6
Sizes 5, 6, & 9
Sold in pairs.

Butt Hinge with Fixed Pin
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Height Pin: 1-1/2”
Width Open: 1-1/2”
Screw Size: #8

Retail Pkg. OEM Bulk Pkg.
0941DP0CHR 0941000CHR
Fig. 0941
8 Sold in pairs.
Hinge with Fixed Pin
Material: Bronze
Finish: Chrome Plated
Dimensions: Height Pin: 1-1/2”
Screw Size: #8

Width Open Retail Pkg. OEM Bulk Pkg.
3” 0951DP1CHR 0951001CHR
4” 0951DP2CHR 0951002CHR
Fig. 0951
Sold in pairs.

Hinge with Fixed Pin
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Height Pin: 1-1/2”
Width Open: 3”
Screw Size: #8

Retail Pkg. OEM Bulk Pkg.
0808DP0CHR 0808000CHR Fig. 0808
Sold in pairs.

146 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
